TSV912A - 8-MHz operational amplifiers

Download the TSV912A datasheet PDF (TSV911A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 8-mhz operational amplifiers.

Description

The TSV91x and TSV91xA operational amplifiers (op amps) offer low voltage operation and rail-to-rail input and output, as well as an excellent speed/power consumption ratio, providing an 8 MHz gain-bandwidth product while consuming only 1.1 mA maximum at 5 V.

Features

  • Rail-to-rail input and output.
  • Wide bandwidth.
  • Low power consumption: 820 µA typ.
  • Unity gain stability.
  • High output current: 35 mA.
  • Operating from 2.5 V to 5.5 V.
  • Low input bias current, 1 pA typ.
  • Low input offset voltage: 1.5 mV max. (A grade).
  • ESD internal protection ≥ 5 kV.
  • Latch-up immunity.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TSV911A-STMicroelectronics.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • TSV912AH - High temperature rail-to-rail input/output 8 MHz operational amplifiers (ST Microelectronics)
  • TSV912 - 8MHz operational amplifiers (ST Microelectronics)
  • TSV912 - 8-MHz Operational Amplifiers (Texas Instruments)
  • TSV912H - High temperature rail-to-rail input/output 8 MHz operational amplifiers (ST Microelectronics)
  • TSV911 - 8-MHz Operational Amplifiers (Texas Instruments)
  • TSV911 - 8MHz operational amplifiers (ST Microelectronics)
  • TSV914 - 8MHz operational amplifiers (ST Microelectronics)
  • TSV914 - 8-MHz Operational Amplifiers (Texas Instruments)
  • TSV05D101K - ZINC OXIDE VARISTOR (Suntan)
  • TSV05D121K - ZINC OXIDE VARISTOR (Suntan)
Other Datasheets by STMicroelectronics
  • TSV911A - 8-MHz operational amplifiers
  • TSV914A - 8-MHz operational amplifiers
  • TSV991 - Rail-to-rail input/output 20MHz GBP operational amplifiers
  • TSV991A - Rail-to-rail input/output 20MHz GBP operational amplifiers
  • TSV992 - rail-to-rail 5V op amps
  • TSV992A - rail-to-rail 5V op amps
  • TSV994 - rail-to-rail 5V op amps
  • TSV994A - rail-to-rail 5V op amps

Full PDF Text Transcription

Click to expand full text

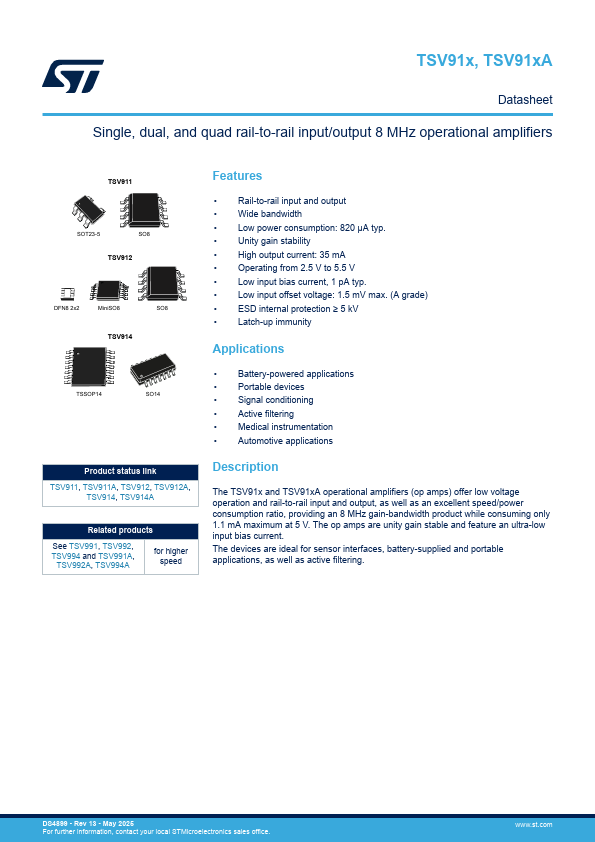

TSV91x, TSV91xA Datasheet Single, dual, and quad rail-to-rail input/output 8 MHz operational amplifiers TSV911 SOT23-5 SO8 TSV912 DFN8 2x2 MiniSO8 SO8 TSV914 TSSOP14 SO14 Product status link TSV911, TSV911A, TSV912, TSV912A, TSV914, TSV914A Related products See TSV991, TSV992, TSV994 and TSV991A, TSV992A, TSV994A for higher speed Features • Rail-to-rail input and output • Wide bandwidth • Low power consumption: 820 µA typ. • Unity gain stability • High output current: 35 mA • Operating from 2.5 V to 5.5 V • Low input bias current, 1 pA typ. • Low input offset voltage: 1.5 mV max.
