STPS160 1A power Schottky rectifier

STPS160 Description

STPS160 Datasheet 60 V, 1 A power Schottky rectifier Product status STPS160 Product summary Symbol Value IF(AV) 1A VRRM 60 V T j(max.) 150 °.
Single Schottky rectifiers designed for high frequency miniature switched mode power supplies such as adaptors and on board DC/DC converters.

STPS160 Features

* Very small conduction losses
* Negligible switching losses
* Low forward voltage drop
* Surface mount miniature packages
* Avalanche capability specified

STPS160 Applications

* Lighting
* Battery charger
* DC / DC converter
* Notebook adapter

📥 Download Datasheet

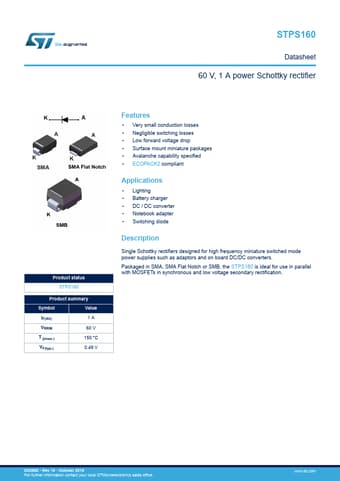

Preview of STPS160 PDF
datasheet Preview Page 2 datasheet Preview Page 3
