STPS16150CT - 150V power Schottky rectifier

This page provides the datasheet information for the STPS16150CT, a member of the STPS16150C 150V power Schottky rectifier family.

Description

The STPS16150C is a dual center tap Schottky rectifier suited for high frequency switch mode power supply.

Available in TO-220AB, this device is optimized for use in LCD screens or adaptors providing such applications with good efficiency at both low and high load.

Features

  • High junction temperature capability.
  • Good trade-off between leakage current and forward voltage drop.
  • Low leakage current.
  • Avalanche capability rated.

📥 Download Datasheet

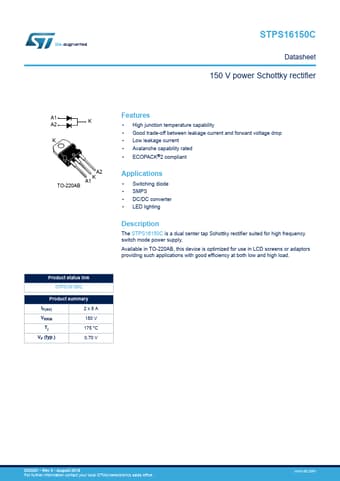

Datasheet preview – STPS16150CT

Datasheet Details

Part number STPS16150CT
Manufacturer STMicroelectronics
File Size 183.09 KB
Description 150V power Schottky rectifier
Datasheet download datasheet STPS16150CT Datasheet
Additional preview pages of the STPS16150CT datasheet.

📁 Similar Datasheet

  • STPS16150C - 150V power Schottky rectifier (ST Microelectronics)
  • STPS16170CB - Schottky Barrier Rectifier (INCHANGE)
  • STPS160 - 1A power Schottky rectifier (ST Microelectronics)
  • STPS160H100TV - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS1620 - 16A SUPER-FAST RECTIFIER (DIODES)
  • STPS1640 - 16A SUPER-FAST RECTIFIER (DIODES)
  • STPS1660 - 16A SUPER-FAST RECTIFIER (DIODES)
  • STPS16H100C - High voltage power Schottky rectifier (ST Microelectronics)
  • STPS16L40 - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
  • STPS16L40CT - LOW DROP POWER SCHOTTKY RECTIFIER (ST Microelectronics)
Other Datasheets by STMicroelectronics

Full PDF Text Transcription

Click to expand full text
STPS16150C Datasheet 150 V power Schottky rectifier A1 A2 K K A2 A1 K TO-220AB Product status link STPS16150C Product summary IF(AV) 2x8A VRRM 150 V Tj 175 °C VF (typ.) 0.70 V Features • High junction temperature capability • Good trade-off between leakage current and forward voltage drop • Low leakage current • Avalanche capability rated • ECOPACK®2 compliant Applications • Switching diode • SMPS • DC/DC converter • LED lighting Description The STPS16150C is a dual center tap Schottky rectifier suited for high frequency switch mode power supply. Available in TO-220AB, this device is optimized for use in LCD screens or adaptors providing such applications with good efficiency at both low and high load.
