STPS16150CG, STPS16150C 150V power Schottky rectifier

STPS16150CG Description

STPS16150C Datasheet 150 V power Schottky rectifier A1 A2 K K A2 A1 K TO-220AB Product status link STPS16150C Product summary IF(AV) 2x8A VRR.
The STPS16150C is a dual center tap Schottky rectifier suited for high frequency switch mode power supply.

STPS16150CG Features

* High junction temperature capability
* Good trade-off between leakage current and forward voltage drop
* Low leakage current
* Avalanche capability rated

STPS16150CG Applications

* Switching diode
* SMPS
* DC/DC converter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: STPS16150CG, STPS16150C. Please refer to the document for exact specifications by model.

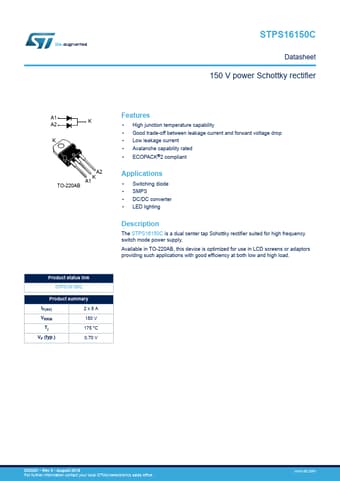

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
STPS16150CG, STPS16150C
Manufacturer
STMicroelectronics ↗
File Size
183.09 KB
Datasheet
STPS16150C_STMicroelectronics.pdf
Description
150V power Schottky rectifier
Note
This datasheet PDF includes multiple part numbers: STPS16150CG, STPS16150C.
Please refer to the document for exact specifications by model.
