STPS16H100C - High voltage power Schottky rectifier

Description

Dual center tap Schottky rectifier designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-DC converters.

Features

  • Negligible switching losses.
  • High junction temperature capability.
  • Low leakage current.
  • Good trade off between leakage current and forward voltage drop.
  • Avalanche capability specified.

📥 Download Datasheet

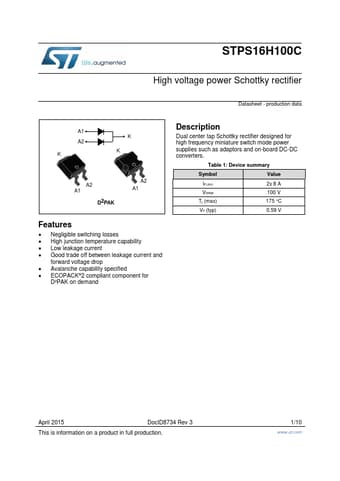

Datasheet preview – STPS16H100C

Datasheet Details

Part number STPS16H100C
Manufacturer STMicroelectronics
File Size 398.48 KB
Description High voltage power Schottky rectifier
Datasheet download datasheet STPS16H100C Datasheet
Additional preview pages of the STPS16H100C datasheet.

📁 Similar Datasheet

  • STPS16H100CFP - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • STPS16H100CG - High voltage power Schottky rectifier (STMicroelectronics)
  • STPS16H100CR - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • STPS16H100CT - HIGH VOLTAGE POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • STPS160-Y - Automotive power Schottky rectifier (STMicroelectronics)
  • STPS16045TV - POWER SCHOTTKY RECTIFIER (STMicroelectronics)
  • STPS160A - 1A power Schottky rectifier (STMicroelectronics)
  • STPS160U - 1A power Schottky rectifier (STMicroelectronics)
  • STPS16150CG - 150V power Schottky rectifier (STMicroelectronics)
  • STPS16150CR - 150V power Schottky rectifier (STMicroelectronics)
Other Datasheets by ST Microelectronics

Full PDF Text Transcription

Click to expand full text
STPS16H100C High voltage power Schottky rectifier Datasheet - production data A1 A2 K K K A2 A1 D2PAK A2 A1 Features  Negligible switching losses  High junction temperature capability  Low leakage current  Good trade off between leakage current and forward voltage drop  Avalanche capability specified  ECOPACK®2 compliant component for D²PAK on demand Description Dual center tap Schottky rectifier designed for high frequency miniature switch mode power supplies such as adaptors and on-board DC-DC converters. Table 1: Device summary Symbol Value IF(AV) VRRM Tj (max) VF (typ) 2x 8 A 100 V 175 °C 0.59 V April 2015 DocID8734 Rev 3 This is information on a product in full production. 1/10 www.st.
