STP60NS04Z Datasheet - ST Microelectronics

STP60NS04Z, N-CHANNEL Power MOSFET

® STP60NS04Z N - CHANNEL CLAMPED 10mΩ - 60A - TO-220 FULLY PROTECTED MESH OVERLAY™ MOSFET PRELIMINARY DATA TYPE STP60NS04Z s s s s V DSS R DS(on) .
This fully clamped Mosfet is produced by using the latest advanced Company’s Mesh Overlay process which is based on a novel strip layout.

STP60NS04Z_STMicroelectronics.pdf

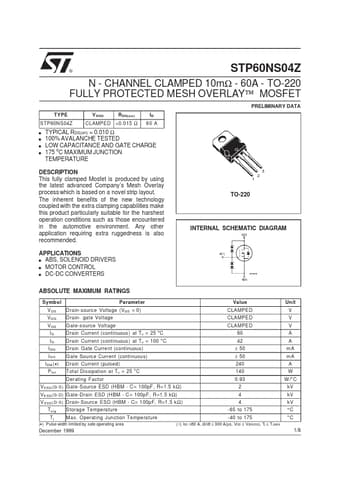

STP60NS04Z Datasheet Preview — Preview of STP60NS04Z PDF

Datasheet Details

Part number:

STP60NS04Z

Manufacturer:

STMicroelectronics ↗

File Size:

91.90 KB

Description:

N-CHANNEL Power MOSFET

Applications

* ABS, SOLENOID DRIVERS s MOTOR CONTROL s DC-DC CONVERTERS s TO-220 INTERNAL SCHEMATIC DIAGRAM ABSOLUTE MAXIMUM RATINGS Symbol V DS V DG V GS ID ID I DG I GS I DM (
* ) P tot Drain- gate Voltage G ate-source Voltage Drain Current (continuous) at Tc = 25 oC Drain Current (continuous) at Tc =
