STP60NF06L N-Channel MOSFET

STP60NF06L Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor STP60NF06L *.

STP60NF06L Features

* With low gate drive requirements
* Easy to drive
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP60NF06L Applications

* Solenold and relay dirvers
* DC-DC converters
* Automotive environment
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 60 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single Pulsed ±15 60 42 240 PD

📥 Download Datasheet

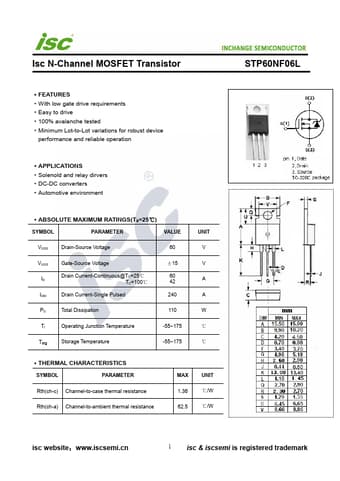

Preview of STP60NF06L PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP60NF06L
Manufacturer
INCHANGE
File Size
201.03 KB
Datasheet
STP60NF06L-INCHANGE.pdf
Description
N-Channel MOSFET
