STGY40NC60VD, IGBT

STGY40NC60VD N-CHANNEL 50A - 600V - Max247 Very Fast PowerMESH™ IGBT Table 1: General .
Using the latest high voltage technology based on a patented strip layout, STMicroelectronics has designed an advanced family of IGBTs, the PowerMESH™.

STGY40NC60VD_STMicroelectronics.pdf

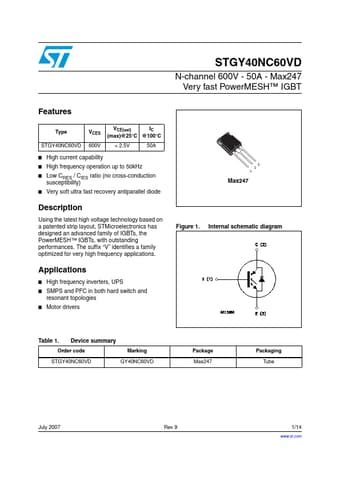

STGY40NC60VD Datasheet Preview — Preview of STGY40NC60VD PDF

Datasheet Details

Part number:

STGY40NC60VD

Manufacturer:

STMicroelectronics ↗

File Size:

275.19 KB

Description:

IGBT

Features

* TYPE STGY40NC60VD s s Figure 1: Package IC @100°C 50 A VCES 600 V VCE(sat) (Max) @25°C < 2.5 V s s s s s HIGH CURRENT CAPABILITY HIGH FREQUENCY OPERATION UP TO 50 KHz LOSSES INCLUDE DIODE RECOVERY ENERGY OFF LOSSES INCLUDE TAIL CURRENT LOWER CRES / CIES RATIO VERY SOFT ULTRA FAST RECOVERY ANT

Applications

* HIGH FREQUENCY INVERTERS s SMPS and PFC IN BOTH HARD SWITCH AND RESONANT TOPOLOGIES s UPS s MOTOR DRIVERS s Table 2: Order Codes SALES TYPE STGY40NC60VD MARKING GY40NC60VD PACKAGE Max247 PACKAGING TUBE Rev.8 July 2004 1/11 STGY40NC60VD Table 3: Absolute Maximum ratings Symbol VCES VECR VGE IC IC
