STGYA120M65DF2AG Datasheet - STMicroelectronics

STGYA120M65DF2AG, IGBT

STGYA120M65DF2AG Datasheet Automotive-grade trench gate field-stop, 650 V, 120 A, low-loss, M series IGBT in a Max247 long leads package .
This device is an IGBT developed using an advanced proprietary trench gate fieldstop structure.

STGYA120M65DF2AG-STMicroelectronics.pdf

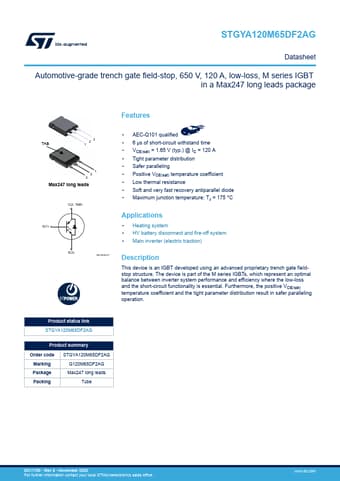

STGYA120M65DF2AG Datasheet Preview — Preview of STGYA120M65DF2AG PDF

STGYA120M65DF2AG Datasheet Preview Page 2

STGYA120M65DF2AG Datasheet Preview Page 3

Datasheet Details

Part number:

STGYA120M65DF2AG

Manufacturer:

STMicroelectronics ↗

File Size:

2.13 MB

Description:

IGBT

Features

* TAB 1 23 TAB 1 2 3 Max247 long leads C(2, TAB) G(1) E(3) NG1E3C2T
* AEC-Q101 qualified
* 6 µs of short-circuit withstand time
* VCE(sat) = 1.65 V (typ. ) @ IC = 120 A
* Tight parameter distribution
* Safer paralleling
* Positive VCE(sat) tempera

Applications

* Heating system
* HV battery disconnect and fire-off system
