LM2902W - Low-power quad operational amplifier

Name: LM2902W
SKU: LM2902W-569345

ST Microelectronics

📥 Download Datasheet

LM2902W Datasheet Preview — Preview of LM2902W PDF

Datasheet Details

Part number	LM2902W
Manufacturer	STMicroelectronics
File Size	659.43 KB
Description	Low-power quad operational amplifier
Datasheet	LM2902W_STMicroelectronics.pdf

LM2902W Product details

Description

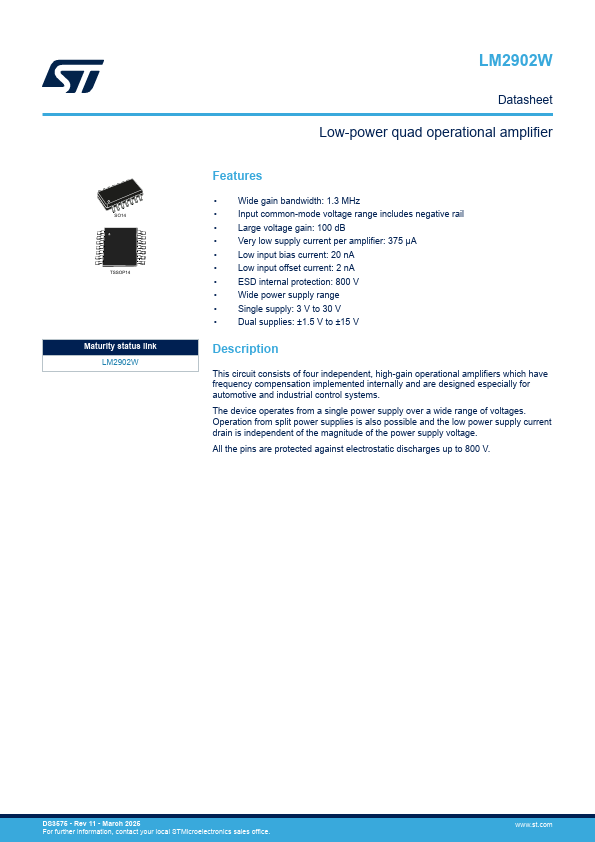

This circuit consists of four independent, high-gain operational amplifiers which have frequency compensation implemented internally and are designed especially for automotive and industrial control systems.

Features

Wide gain bandwidth: 1.3 MHz.
Input common-mode voltage range includes negative rail.
Large voltage gain: 100 dB.
Very low supply current per amplifier: 375 µA.
Low input bias current: 20 nA.
Low input offset current: 2 nA.
ESD internal protection: 800 V.
Wide power supply range.
Single supply: 3 V to 30 V.
Dual supplies: ±1.5 V to ±15 V.
