LM2903H - Low-power dual voltage comparator

Name: LM2903H
SKU: LM2903H-569346

ST Microelectronics

📥 Download Datasheet

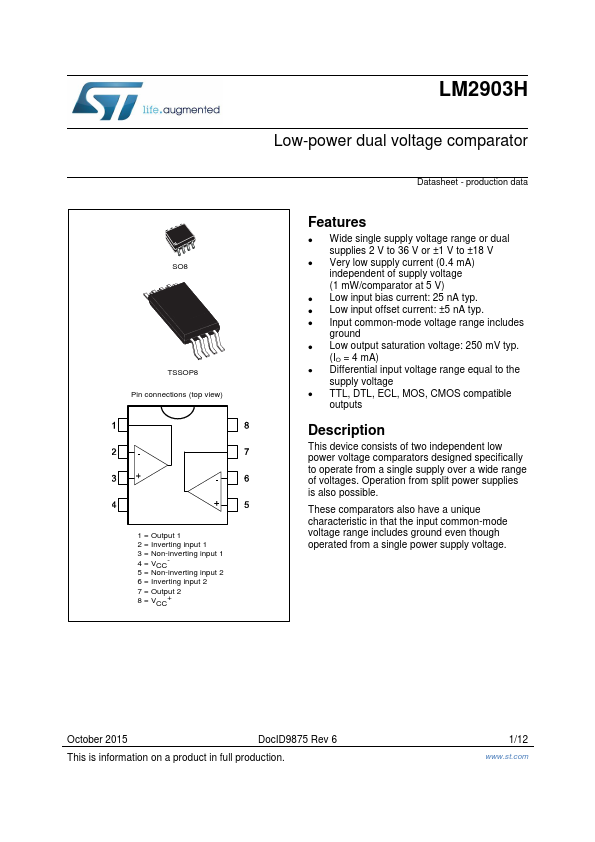

LM2903H Datasheet Preview — Preview of LM2903H PDF

Datasheet Details

Part number	LM2903H
Manufacturer	STMicroelectronics
File Size	400.21 KB
Description	Low-power dual voltage comparator
Datasheet	LM2903H_STMicroelectronics.pdf

LM2903H Product details

Description

This device consists of two independent low power voltage comparators designed specifically to operate from a single supply over a wide range of voltages.

Features

Wide single supply voltage range or dual supplies 2 V to 36 V or ±1 V to ±18 V Very low supply current (0.4 mA) independent of supply voltage (1 mW/comparator at 5 V) Low input bias current: 25 nA typ. Low input offset current: ±5 nA typ. Input common-mode voltage range includes ground Low output saturation voltage: 250 mV typ. (IO = 4 mA) Differential input voltage range equal to the supply voltage TTL, DTL, ECL, MOS, CMOS compatible outputs.
