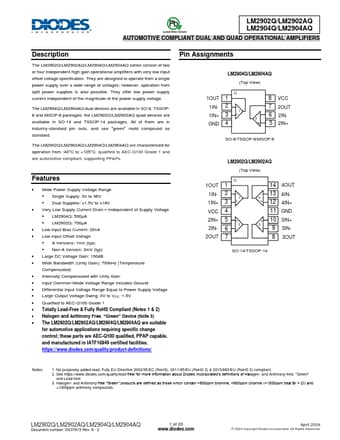

LM2902AQ - AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS

Download the LM2902AQ datasheet PDF. This datasheet also covers the LM2902Q variant, as both devices belong to the same automotive compliant dual and quad operational amplifiers family and are provided as variant models within a single manufacturer datasheet.

General Description

The LM2902Q/LM2902AQ/LM2904Q/LM2904AQ series consist of two or four independent high-gain operational amplifiers with very low input offset voltage specification.

Key Features

  • Wide Power Supply Voltage Range.
  • Single Supply: 3V to 36V.
  • Dual Supplies: ±1.5V to ±18V.
  • Very Low Supply Current Drain.
  • Independent of Supply Voltage.
  • LM2904Q: 500µA.
  • LM2902Q: 700µA.
  • Low Input Bias Current: 20nA.
  • Low Input Offset Voltage.
  • A Versions: 1mV (typ).
  • Non-A Version: 2mV (typ).
  • Large DC Voltage Gain: 100dB.
  • Wide Bandwidth (Unity Gain): 700kHz (Temperature Compensated).
  • Internally Compe.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (LM2902Q-Diodes.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
LM2902A 36V General Purpose Op Amps 3Peak
LM2902A Quad Operational Amplifier Fairchild Semiconductor
LM2902AM Quad Operational Amplifier Fairchild Semiconductor
LM2902 Quad Operational Amplifier Fairchild Semiconductor
LM2902 Low-power quad operational amplifier STMicroelectronics

Other Datasheets by Diodes Incorporated

Part Number Description
LM2902A DUAL AND QUAD OPERATIONAL AMPLIFIERS
LM2902 DUAL AND QUAD OPERATIONAL AMPLIFIERS
LM2902Q AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS
LM2901 DUAL AND QUAD DIFFERENTIAL COMPARATORS
LM2901A DUAL AND QUAD DIFFERENTIAL COMPARATORS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
LM2902Q/LM2902AQ LM2904Q/LM2904AQ AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS Description The LM2902Q/LM2902AQ/LM2904Q/LM2904AQ series consist of two or four independent high-gain operational amplifiers with very low input offset voltage specification. They are designed to operate from a single power supply over a wide range of voltages; however, operation from split power supplies is also possible. They offer low power supply current independent of the magnitude of the power supply voltage. The LM2904Q/LM2904AQ dual devices are available in SO-8, TSSOP8 and MSOP-8 packages; the LM2902Q/LM2902AQ quad devices are available in SO-14 and TSSOP-14 packages. All of them are in industry-standard pin outs, and use “green” mold compound as standard.
