MBRF20150CT - SCHOTTKY RECTIFIER

Name: MBRF20150CT
SKU: MBRF20150CT-1587341

SMC Diode

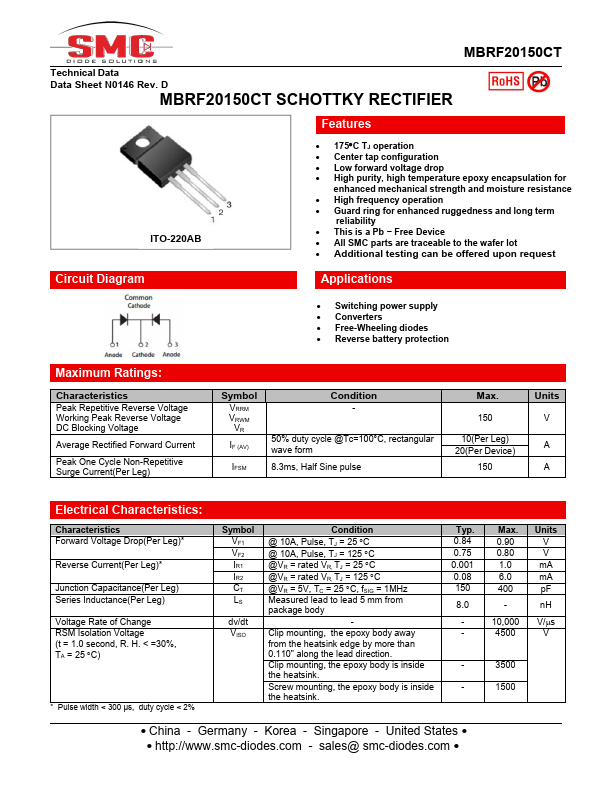

The MBRF20150CT by SMC Diode is a SCHOTTKY RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	MBRF20150CT
Manufacturer	SMC Diode
File Size	186.92 KB
Description	SCHOTTKY RECTIFIER
Datasheet	MBRF20150CT-SMCDiode.pdf

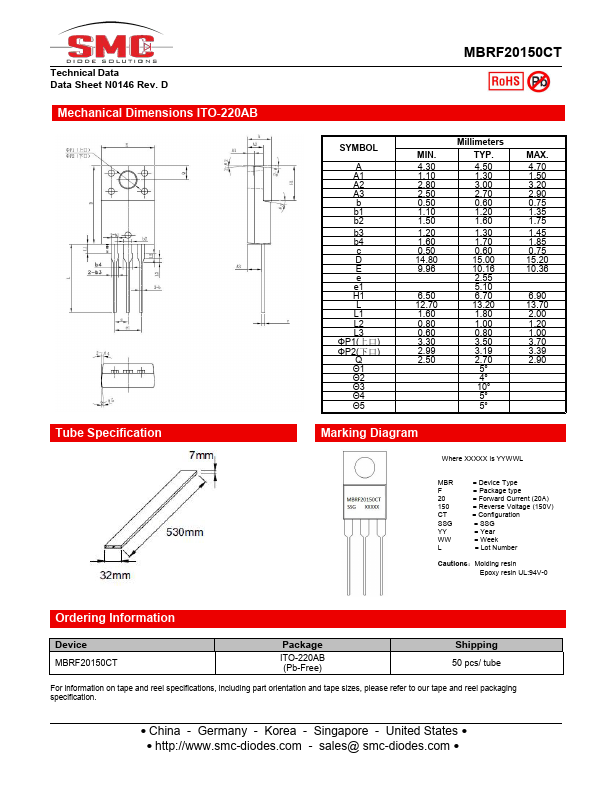

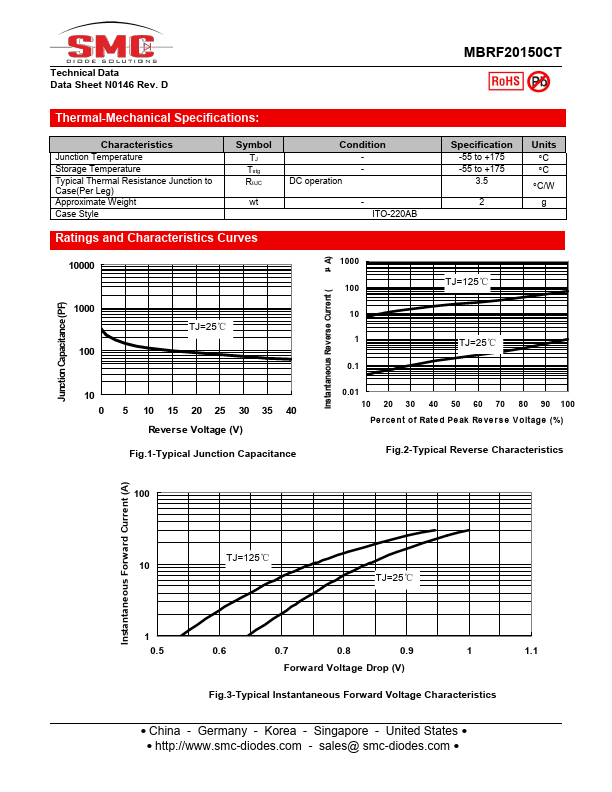

Additional preview pages of the MBRF20150CT datasheet.

ITO-220AB.
175C TJ operation.
Center tap configuration.
Low forward voltage drop.
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance.
High frequency operation.
Guard ring for enhanced ruggedness and long term reliability.
This is a Pb.
Free Device.
All SMC parts are traceable to the wafer lot.
Additional testing can be offered upon request Circuit Diagram.
