MBRF10200 - SCHOTTKY RECTIFIER

MBRF10200 Description

Technical Data Data Sheet N0838, Rev.B MBRF10200 SCHOTTKY RECTIFIER MBRF10200 ITO-220AC .

MBRF10200 Features

* 150C TJ operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* Terminals finish: 100% Pure

MBRF10200 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Center tap configuration Symbol VRRM VRWM VR IF (AV) IFSM Condition - Tc=115°C 8.3ms, Half Sine pulse, TC = 25 C Max. 200 10 128 Units V A A Electrical Characteristics: Characteristi

📥 Download Datasheet

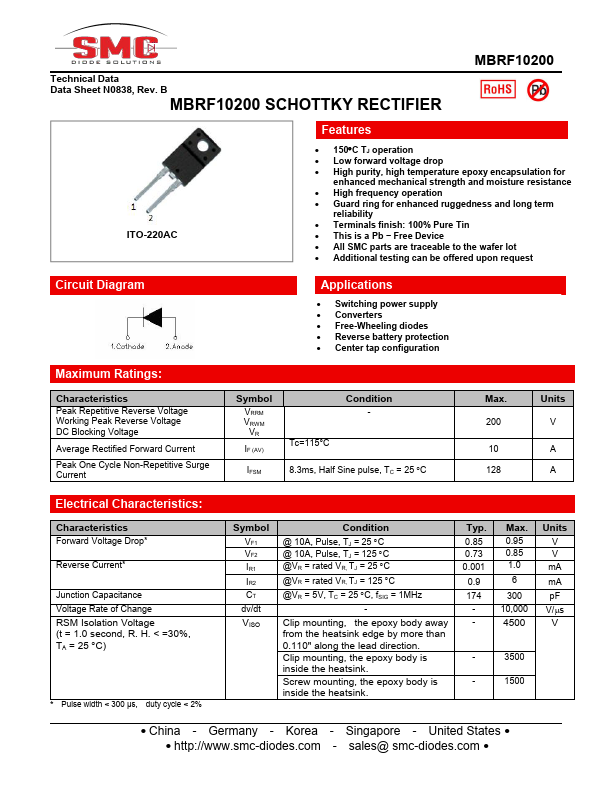

Preview of MBRF10200 PDF

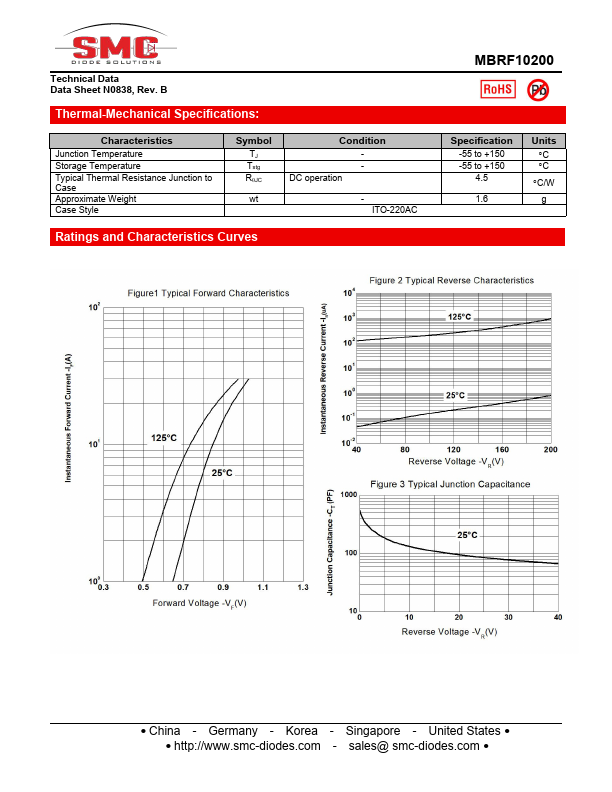

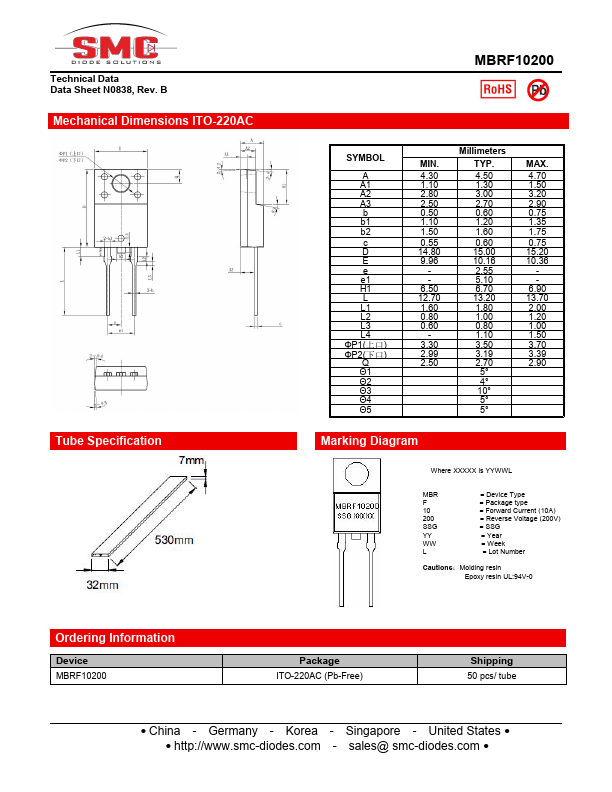

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF10200
Manufacturer
SMC Diode
File Size
435.42 KB
Datasheet
MBRF10200-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
