MBRF10150 - SCHOTTKY RECTIFIER

MBRF10150 Description

Technical Data Data Sheet N0638, Rev.C MBRF10150 SCHOTTKY RECTIFIER MBRF10150 ITO-220AC .

MBRF10150 Features

* 175C TJ operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* High frequency operation
* Guard ring for enhanced ruggedness and long term reliability
* This is a Pb
* Free

MBRF10150 Applications

* Switching power supply
* Converters
* Free-Wheeling diodes
* Reverse battery protection
* Center tap configuration Maximum Ratings: Characteristics Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average Rectified Forward Current Peak One Cycle

📥 Download Datasheet

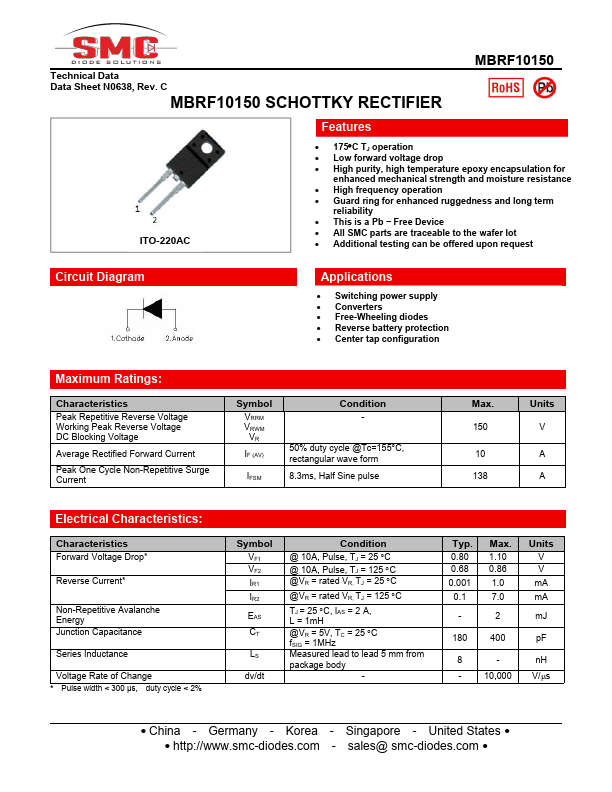

Preview of MBRF10150 PDF

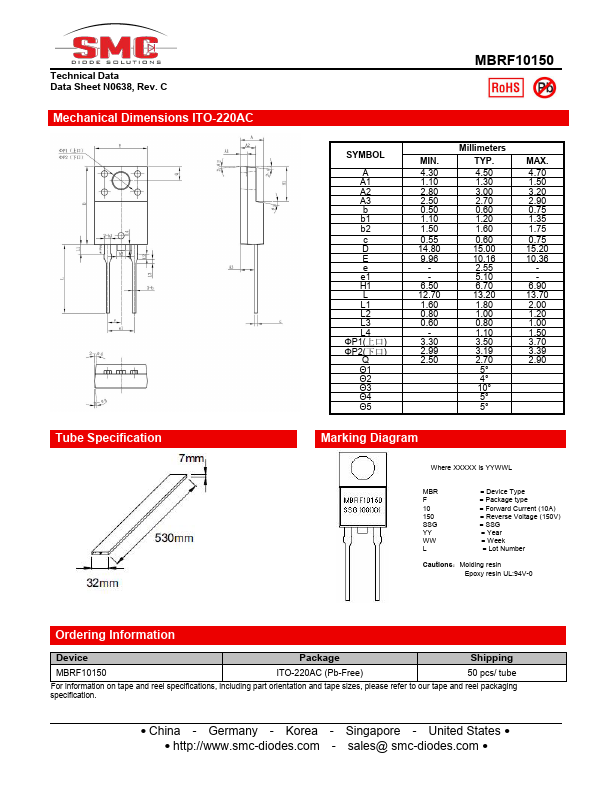

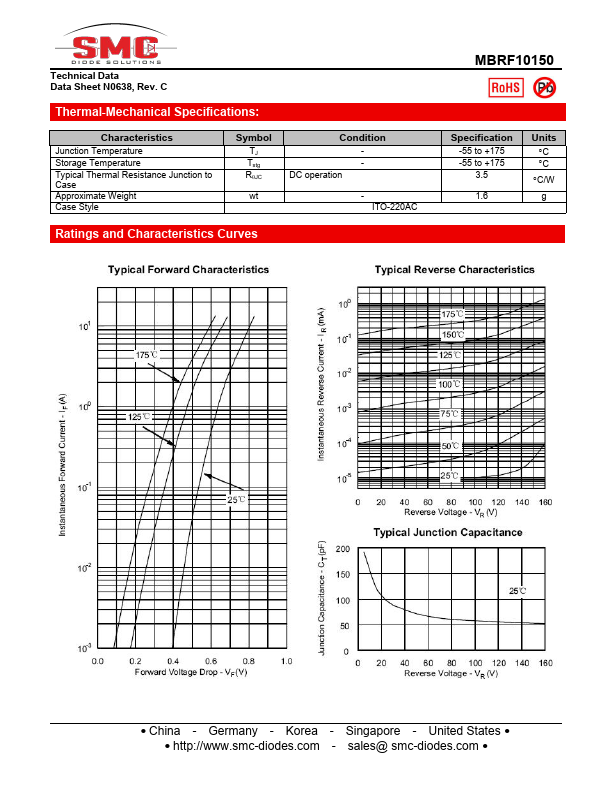

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF10150
Manufacturer
SMC Diode
File Size
306.66 KB
Datasheet
MBRF10150-SMCDiode.pdf
Description
SCHOTTKY RECTIFIER
