MBRF10100CT - SCHOTTKY BARRIER RECTIFIER

Download the MBRF10100CT datasheet PDF. This datasheet also covers the MBRF1020CT variant, as both devices belong to the same schottky barrier rectifier family and are provided as variant models within a single manufacturer datasheet.

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • Dual rectifier construction, positive center tap.
  • Metal silicon junction, majority carrier conduction.
  • Low power loss, high efficiency.
  • Guardring for overvoltage protection.
  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBRF1020CT-KD.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MBRF10100CT
Manufacturer KD
File Size 779.54 KB
Description SCHOTTKY BARRIER RECTIFIER
Datasheet download datasheet MBRF10100CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBRF10100CT 10 Amp Schottky Barrier Rectifier Micro Commercial Components
MBRF10100CT 10A High Power Schottky Barrier Rectifiers CITC
MBRF10100CT Dual Common Cathode Schottky Rectifier Taiwan Semiconductor Company
MBRF10100CT High Power Schottky Diode VIKING TECH
MBRF10100CT Dual High Voltage Trench MOS Barrier Schottky Rectifier Vishay

Other Datasheets by KD

Part Number Description
MBRF10100 SCHOTTKY BARRIER RECTIFIER
MBRF1020 SCHOTTKY BARRIER RECTIFIER
MBRF1020CT SCHOTTKY BARRIER RECTIFIER
MBRF1030 SCHOTTKY BARRIER RECTIFIER
MBRF1030CT SCHOTTKY BARRIER RECTIFIER

Full PDF Text Transcription

Click to expand full text

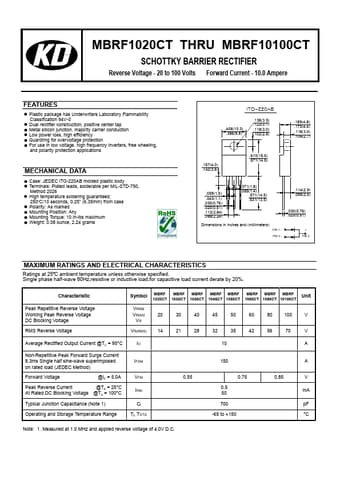

MBRF1020CT THRU MBRF10100CT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 Volts Forward Current - 10.0 Ampere FEATURES ● Plastic package has Underwriters Laboratory Flammability Classification 94V-0 ● Dual rectifier construction, positive center tap ● Metal silicon junction, majority carrier conduction ● Low power loss, high efficiency ● Guardring for overvoltage protection ● For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications MECHANICAL DATA ● Case: JEDEC ITO-220AB molded plastic body ● Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 ● High temperature soldering guaranteed: 250oC/10 seconds, 0.25" (6.35mm) from case ● Polarity: As marked ● Mounting Position: Any ● Mounting Torque: 10 in-lbs maximum ● Weight: 0.
