MBRF20150CT-Y, MBRF2045CT-Y - Dual Common Cathode Schottky Rectifier

Taiwan Semiconductor

The MBRF20150CT-Y by Taiwan Semiconductor is a Dual Common Cathode Schottky Rectifier. Below is the official datasheet preview.

📥 Download Datasheet

MBRF20150CT-Y Dual Common Cathode Schottky Rectifier by Taiwan Semiconductor - Datasheet Preview — Official preview page of the **MBRF20150CT-Y** Dual Common Cathode Schottky Rectifier datasheet (Taiwan Semiconductor).

Datasheet Details

Part number	MBRF20150CT-Y, MBRF2045CT-Y
Manufacturer	Taiwan Semiconductor
File Size	221.57 KB
Description	Dual Common Cathode Schottky Rectifier
Datasheet	MBRF2045CT-Y-TaiwanSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MBRF20150CT-Y, MBRF2045CT-Y. Please refer to the document for exact specifications by model.

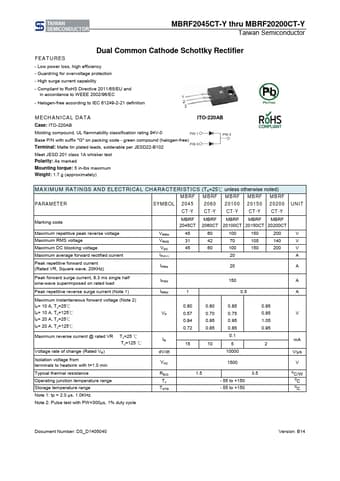

Additional preview pages of the MBRF20150CT-Y datasheet.

MBRF20150CT-Y Product details

Description

Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) AVERAGE FORWARD A CURRENT (A) FIG.1 FORWARD CURRENT DERATING CURVE 25 20 15 10 RESISTIVE OR 5 INDUCTIVELOAD WITH HEATSINK 0 50 60 70 80 90 100 110 120 130 140 150 CASE TEMPERATURE (oC) PEAK FORWARD SURGE CURRENT (A) FIG.2 MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT PER LEG 150 8.3ms Single Half Sine Wave 125 JEDEC Method 100 75 50 25 0 1 10 NUMBER OF CYCLES AT 60 Hz 100 FIG.3 TYPICAL FORWARD CHARACT

Features

- Low power loss, high efficiency - Guardring for overvoltage protection - High surge current capability - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition.
