MBRF20150 - Isolated 20.0 AMPS. Schottky Barrier Rectifiers

Download the MBRF20150 datasheet PDF (MBRF2035 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for isolated 20.0 amps. schottky barrier rectifiers.

Features

  • Plastic material used carries Underwriters Laboratory Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency inverters, free wheeling, and polarity protection.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MBRF2035-TaiwanSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • MBRF20150 - Schottky Barrier Rectifier (GME)
  • MBRF20150CA - Dual Common Anode Schottky Half Bridge Rectifiers (Thinki Semiconductor)
  • MBRF20150CT - Schottky Barrier Rectifier (Inchange Semiconductor)
  • MBRF20150CT - 20A High Power Schottky Barrier Rectifiers (CITC)
  • MBRF20150CT - SCHOTTKY BARRIER RECTIFIERS (HY)
  • MBRF20150CT - SCHOTTKY RECTIFIER (SMC Diode)
  • MBRF20150CT - 20.0 Ampere Insulated FullPak High Voltage Schottky Barrier Rectifiers (Thinki Semiconductor)
  • MBRF20150CT - High Power Schottky Diode (VIKING TECH)
  • MBRF20150CT - 20A SCHOTTKY BARRIER RECTIFIER (Diodes)
  • MBRF20150CT - Schottky Diode (BLUE ROCKET ELECTRONICS)
Other Datasheets by Taiwan Semiconductor

Full PDF Text Transcription

Click to expand full text

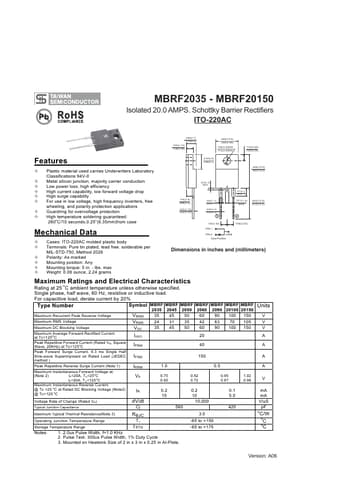

MBRF2035 - MBRF20150 Isolated 20.0 AMPS. Schottky Barrier Rectifiers ITO-220AC .185(4.7) .173(4.4) .124(3.16) .118(3.00) .406(10.3) .390(9.90) .134(3.4)DIA .113(3.0)DIA .112(2.85) .100(2.55) Features Plastic material used carries Underwriters Laboratory Classifications 94V-0 Metal silicon junction, majority carrier conduction Low power loss, high efficiency High current capability, low forward voltage drop High surge capability For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications Guardring for overvoltage protection High temperature soldering guaranteed: 260oC/10 seconds,0.25”(6.35mm)from case Mechanical Data Cases: ITO-220AC molded plastic body Terminals: Pure tin plated, lead free.
