SIT1028Q Datasheet (SIT) - Local Interconnect Network transceiver

SIT1028Q, Local Interconnect Network transceiver

Table 1.

SIT1028Q pin description Pin Symbol Description 1 VBAT battery supply voltage 2 EN enable input 3 GND ground 4 LIN LIN bus line input/output 5 RXD receive data output; active LOW after a wake-up event 6 TXD transmit data input 7 RSTN voltage regulator reset signal o

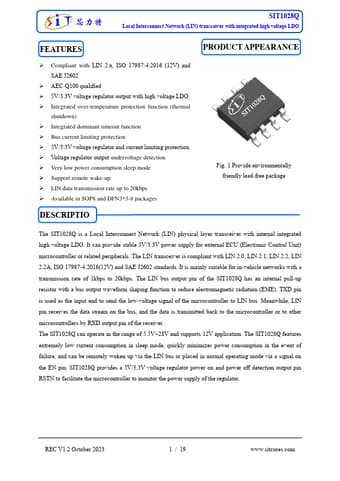

SIT1028Q Features

* Compliant with LIN 2.x, ISO 17987-4:2016 (12V) and SAE J2602

* AEC-Q100 qualified

* 5V/3.3V voltage regulator output with high voltage LDO

* Integrated over-temperature protection function (thermal shutdown)

* Integrated dominant timeout function

* B
