SIT1040Q - 1Mbps High Speed CAN transceiver

Description

The SIT1040Q is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.

It is primarily intended for high speed applications, up to 1 MBaud, in passenger cars.

📥 Download Datasheet

Datasheet Details

Part number SIT1040Q
Manufacturer SIT
File Size 1.15 MB
Description 1Mbps High Speed CAN transceiver
Datasheet download datasheet SIT1040Q Datasheet

📁 Similar Datasheet

  • SIT10093-0911 - WIDE INVERTER TRANSFORMER (ETC)
  • SiT1408B - Active Resonator Drop-In Replacement (SiTime)
  • SiT1409B - Active Resonator Drop-In Replacement (SiTime)
  • SiT1418B - Active Resonator Drop-In Replacement (SiTime)
  • SiT1419B - Active Resonator Drop-In Replacement (SiTime)
  • SiT1420B - Active Resonator Drop-In Replacement (SiTime)
  • SiT1421B - Active Resonator Drop-In Replacement (SiTime)
  • SiT1424B - Active Resonator Drop-In Replacement (SiTime)
  • SiT1425B - Active Resonator Drop-In Replacement (SiTime)
  • SiT1532 - XTAL Replacement (SiTime)
Other Datasheets by SIT
  • SIT1040 - 1Mbps High Speed CAN transceiver
  • SIT1042 - standby mode CAN FD bus transceiver
  • SIT1042A - 5Mbps CAN FD transceiver
  • SIT1042AQ - 5Mbps CAN FD transceiver
  • SIT1043 - Low-Power CAN FD Bus Transceiver
  • SIT1043Q - Low-Power CAN FD Bus Transceiver
  • SIT1044 - 5Mbps CAN FD Transceiver
  • SIT1044Q - 5Mbps CAN FD Transceiver

Full PDF Text Transcription

Click to expand full text

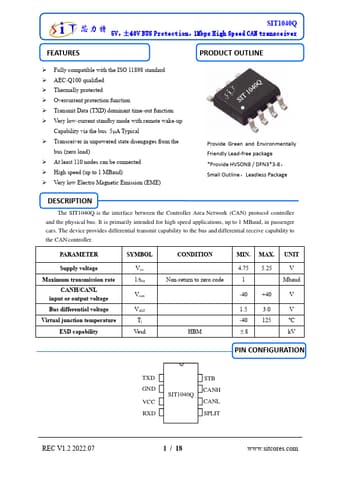

5V，±40V BUS SIT1040Q Protection，1Mbps High Speed CAN transceiver FEATURES PRODUCT OUTLINE ➢ Fully compatible with the ISO 11898 standard ➢ AEC-Q100 qualified ➢ Thermally protected ➢ Overcurrent protection function ➢ Transmit Data (TXD) dominant time-out function ➢ Very low-current standby mode with remote wake-up Capability via the bus: 5μA Typical ➢ Transceiver in unpowered state disengages from the bus (zero load) ➢ At least 110 nodes can be connected ➢ High speed (up to 1 MBaud) ➢ Very low Electro Magnetic Emission (EME) Provide Green and Environmentally Friendly Lead-free package *Provide HVSON8 / DFN3*3-8， Small Outline，Leadless Package DESCRIPTION The SIT1040Q is the interface between the Controller Area Network (CAN) protocol controller and the physical bus.
