SiT1418B - Active Resonator Drop-In Replacement

SiTime

📥 Download Datasheet

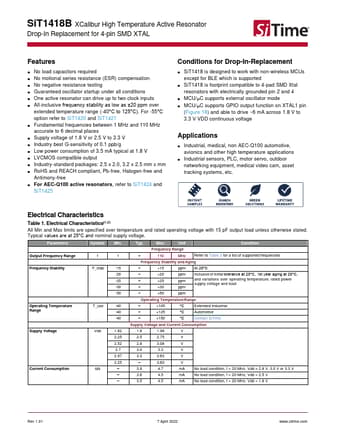

SiT1418B Datasheet Preview — Preview of SiT1418B PDF

Datasheet Details

Part number	SiT1418B
Manufacturer	SiTime
File Size	1.06 MB
Description	Active Resonator Drop-In Replacement
Datasheet	SiT1418B-SiTime.pdf

SiT1418B Product details

Description

Pin Symbol 1 XIN/VDD VDD Power Functionality Connect to µC GPIO pin XTAL1 set High via firmware[3] Top View GND 4 3 XOUT/CLK 2 GND 3 XOUT/CLK Power Output Electrical ground CLK output; connect to µC XTAL2 pin (refer to Figure 18 in Application Note section) XIN/VDD 1 2 GND 4 GND Power Electrical GND Figure 1. Pin Assignments Notes: 3. A capacitor of value 4.7 nF between XIN and ground is recommended (Please refer to the Application Note section).Rev 1.01 Page 2 of 25 w

Features

No load capacitors required.
No motional series resistance (ESR) compensation.
No negative resistance testing.
Guaranteed oscillator startup under all conditions.
One active resonator can drive up to two clock inputs.
All-inclusive frequency stability as low as ±20 ppm over extended temperature range (-40°C to 125°C). For -55°C option refer to SiT1420 and SiT1421.
Fundamental frequencies between 1 MHz and 110 MHz accurate to 6 decimal places.
Supply volta.
