SiT1408B - Active Resonator Drop-In Replacement

SiTime

📥 Download Datasheet

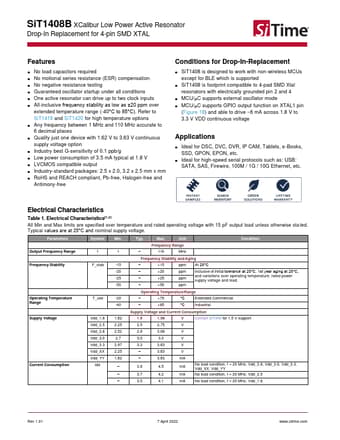

SiT1408B Datasheet Preview — Preview of SiT1408B PDF

Datasheet Details

Part number	SiT1408B
Manufacturer	SiTime
File Size	1.07 MB
Description	Active Resonator Drop-In Replacement
Datasheet	SiT1408B-SiTime.pdf

SiT1408B Product details

Description

Pin Symbol 1 XIN/VDD VDD Power Functionality Connect to µC GPIO pin XTAL1 set High via firmware[3] Top View GND 4 3 XOUT/CLK 2 GND Power Electrical ground 3 XOUT/CLK Output CLK output; connect to µC XTAL2 pin (refer to Figure 18 in Application Note section) XIN/VDD 1 2 GND 4 GND Power Electrical GND F

Features

No load capacitors required.
No motional series resistance (ESR) compensation.
No negative resistance testing.
Guaranteed oscillator startup under all conditions.
One active resonator can drive up to two clock inputs.
All-inclusive frequency stability as low as ±20 ppm over extended temperature range (-40°C to 85°C). Refer to SiT1418 and SiT1420 for high temperature options.
Any frequency between 1 MHz and 110 MHz accurate to 6 decimal places.
Qualify jus.
