SIT1462Q - CAN FD signal improvement transceiver

Description

SIT1462Q is an interface chip applied between the CAN protocol controller and the physical two-wire CAN bus.

Features

  • ISO 11898-2:2024, SAE J2284-1~ SAE J2284-5 and SAE J1939-14 compliant;.
  • Implements CAN Signal Improvement Capability as defined in CiA 601-4:2019;.
  • Thermally protected;.
  • ±40V BUS protection;.
  • Driver (TXD) dominant time-out function;.
  • Low power Standby mode with remote and local wake-up capability;.
  • SIT1462Q/3 I/O pins supports 1.8V, 3.3V and 5V MCU;.
  • Undervoltage protection on pins VCC and VIO;.
  • High-speed CAN, su.

📥 Download Datasheet

Datasheet Details

Part number SIT1462Q
Manufacturer SIT
File Size 610.26 KB
Description CAN FD signal improvement transceiver
Datasheet download datasheet SIT1462Q Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SiT1408B Active Resonator Drop-In Replacement SiTime
SiT1409B Active Resonator Drop-In Replacement SiTime
SiT1418B Active Resonator Drop-In Replacement SiTime
SiT1419B Active Resonator Drop-In Replacement SiTime
SiT1420B Active Resonator Drop-In Replacement SiTime

Other Datasheets by SIT

Part Number Description
SIT1463Q Automotive Signal Improvement Capable CAN FD Transceiver
SIT14503 low dropout linear regulator
SIT14503Q low dropout linear regulator
SIT1021Q Local Interconnect Network transceiver
SIT1022Q Dual channel Local Interconnect Network transceiver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

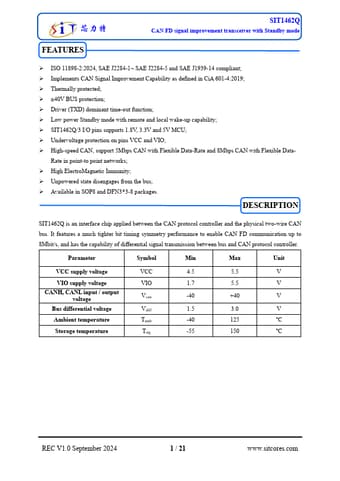

SIT1462Q CAN FD signal improvement transceiver with Standby mode FEATURES ➢ ISO 11898-2:2024, SAE J2284-1~ SAE J2284-5 and SAE J1939-14 compliant; ➢ Implements CAN Signal Improvement Capability as defined in CiA 601-4:2019; ➢ Thermally protected; ➢ ±40V BUS protection; ➢ Driver (TXD) dominant time-out function; ➢ Low power Standby mode with remote and local wake-up capability; ➢ SIT1462Q/3 I/O pins supports 1.8V, 3.3V and 5V MCU; ➢ Undervoltage protection on pins VCC and VIO; ➢ High-speed CAN, support 5Mbps CAN with Flexible Data-Rate and 8Mbps CAN with Flexible Data- Rate in point-to point networks; ➢ High ElectroMagnetic Immunity; ➢ Unpowered state disengages from the bus; ➢ Available in SOP8 and DFN3*3-8 packages.
