SGM7SZ08 - Small Logic Two-Input AND Gate

Name: SGM7SZ08
SKU: SGM7SZ08-1162566

SG Micro

The SGM7SZ08 by SG Micro is a Small Logic Two-Input AND Gate. Below is the official datasheet preview.

Datasheet Details

Part number	SGM7SZ08
Manufacturer	SG Micro
File Size	721.01 KB
Description	Small Logic Two-Input AND Gate
Datasheet	SGM7SZ08-SGMicro.pdf

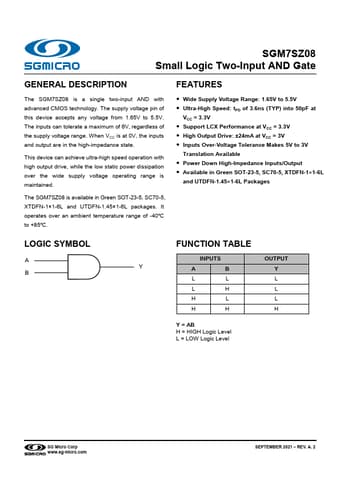

Additional preview pages of the SGM7SZ08 datasheet.

The SGM7SZ08 is a single two-input AND with advanced CMOS technology.

Wide Supply Voltage Range: 1.65V to 5.5V.
Ultra-High Speed: tPD of 3.6ns (TYP) into 50pF at VCC = 3.3V.
Support LCX Performance at VCC = 3.3V.
High Output Drive: ±24mA at VCC = 3V.
Inputs Over-Voltage Tolerance Makes 5V to 3V Translation Available.
Power Down High-Impedance Inputs/Output.
Available in Green SOT-23-5, SC70-5, XTDFN-1×1-6L and UTDFN-1.45×1-6L Packages LOGIC SYMBOL A B.
