SGM708 - Microprocessor Supervisory

Name: SGM708
SKU: SGM708-1003686

Shengbang Microelectronics

📥 Download Datasheet

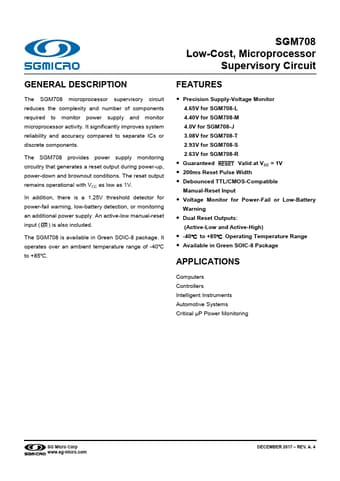

SGM708 Datasheet Preview — Preview of SGM708 PDF

Datasheet Details

Part number	SGM708
Manufacturer	Shengbang Microelectronics
File Size	669.27 KB
Description	Microprocessor Supervisory
Datasheet	SGM708-ShengbangMicroelectronics.pdf

SGM708 Product details

Description

The SGM708 microprocessor supervisory circuit reduces the complexity and number of components required to monitor power supply and monitor microprocessor activity.

Features

Precision Supply-Voltage Monitor 4.65V for SGM708-L 4.40V for SGM708-M 4.0V for SGM708-J 3.08V for SGM708-T 2.93V for SGM708-S 2.63V for SGM708-R.
Guaranteed RESET Valid at VCC = 1V.
200ms Reset Pulse Width.
Debounced TTL/CMOS-Compatible Manual-Reset Input.
Voltage Monitor for Power-Fail or Low-Battery Warning.
Dual Reset Outputs: (Active-Low and Active-High).
-40℃ to +85℃ Operating Temperature Range.
Available in Green SOIC-8 Package.
