SGM721 - Rail-to-Rail I/O CMOS Operational Amplifiers

Name: SGM721
SKU: SGM721-618771

Shengbang Microelectronics

📥 Download Datasheet

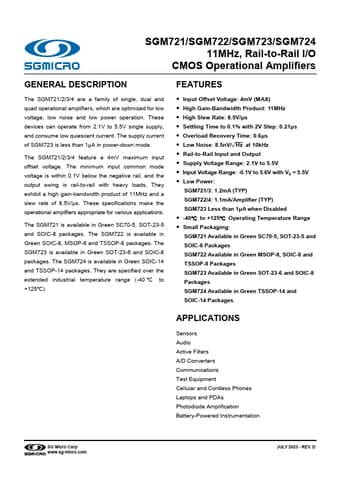

SGM721 Datasheet Preview — Preview of SGM721 PDF

Datasheet Details

Part number	SGM721
Manufacturer	Shengbang Microelectronics
File Size	1.15 MB
Description	Rail-to-Rail I/O CMOS Operational Amplifiers
Datasheet	SGM721_ShengbangMicroelectronics.pdf

SGM721 Product details

Description

The SGM721/2/3/4 are a family of single, dual and quad operational amplifiers, which are optimized for low voltage, low noise and low power operation.

Features

Input Offset Voltage: 4mV (MAX).
High Gain-Bandwidth Product: 11MHz.
High Slew Rate: 8.5V/μs.
Settling Time to 0.1% with 2V Step: 0.21μs.
Overload Recovery Time: 0.6μs.
Low Noise: 8.5nV/√Hz at 10kHz.
Rail-to-Rail Input and Output.
Supply Voltage Range: 2.1V to 5.5V.
Input Voltage Range: -0.1V to 5.6V with VS = 5.5V.
Low Power: SGM721/3: 1.2mA (TYP) SGM722/4: 1.1mA/Amplifier (TYP) SGM723 Less than 1μA when Disabled.
-40℃ to +125℃ Operating T.
