SGM7SZ04 - Small Logic Inverter

Name: SGM7SZ04
SKU: SGM7SZ04-1162565

SG Micro

The SGM7SZ04 by SG Micro is a Small Logic Inverter. Below is the official datasheet preview.

Datasheet Details

Part number	SGM7SZ04
Manufacturer	SG Micro
File Size	598.37 KB
Description	Small Logic Inverter
Datasheet	SGM7SZ04-SGMicro.pdf

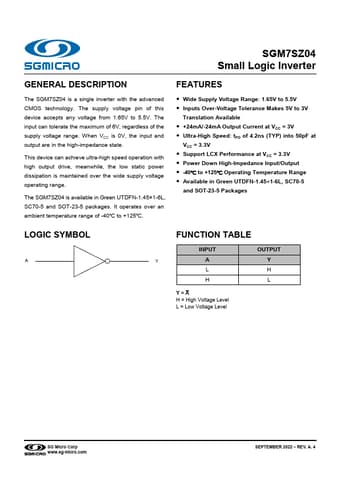

Additional preview pages of the SGM7SZ04 datasheet.

The SGM7SZ04 is a single inverter with the advanced CMOS technology.

Wide Supply Voltage Range: 1.65V to 5.5V.
Inputs Over-Voltage Tolerance Makes 5V to 3V Translation Available.
+24mA/-24mA Output Current at VCC = 3V.
Ultra-High Speed: tPD of 4.2ns (TYP) into 50pF at VCC = 3.3V.
Support LCX Performance at VCC = 3.3V.
Power Down High-Impedance Input/Output.
-40℃ to +125℃ Operating Temperature Range.
Available in Green UTDFN-1.45×1-6L, SC70-5 and SOT-23-5 Packages LOGIC SYMBOL A.
