SGM7SZ126 - Small Logic Buffer

Description

The SGM7SZ126 is a single buffer with three-state output from SGMICRO's Small Logic series.

The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range.

Features

  • Ultra-High Speed: tPD = 3.4ns (TYP) into 50pF at VCC = 3.3V.
  • High Output Drive: ±24mA at VCC = 3V.
  • Broad VCC Operating Range: 1.65V to 5.5V.
  • Matches Performance of LCX Operated at VCC = 3.3V.
  • Power Down High-Impedance Inputs/Output.
  • Over-Voltage Tolerant Inputs Facilitate 5V to 3V Translation.
  • Available in Green SOT-23-5 and SC70-5 Packages LOGIC SYMBOL OE A Y.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SGM706 Microprocessor Supervisory Shengbang Microelectronics
SGM708 Microprocessor Supervisory Shengbang Microelectronics
SGM721 Rail-to-Rail I/O CMOS Operational Amplifiers Shengbang Microelectronics
SGM722 Rail-to-Rail I/O CMOS Operational Amplifiers Shengbang Microelectronics
SGM7222 High Speed USB 2.0 (480Mbps) DPDT Analog Switch SG Micro Limited

Other Datasheets by SG Micro

Part Number Description
SGM7SZ125 Small Logic Buffer
SGM7SZ14 Small Logic Inverter
SGM7SZ19 Small Logic 1-of-2 Decoder/Demultiplexer
SGM7SZ00 Small Logic Two-Input NAND Gate
SGM7SZ04 Small Logic Inverter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

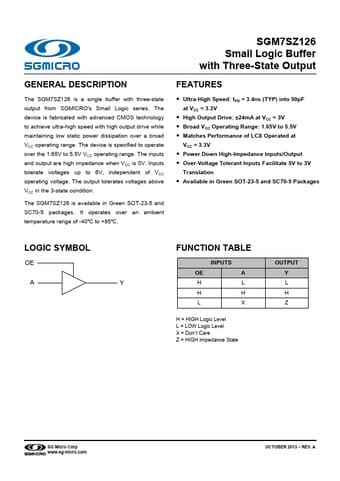

SGM7SZ126 Small Logic Buffer with Three-State Output GENERAL DESCRIPTION The SGM7SZ126 is a single buffer with three-state output from SGMICRO's Small Logic series. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range. The device is specified to operate over the 1.65V to 5.5V VCC operating range. The inputs and output are high impedance when VCC is 0V. Inputs tolerate voltages up to 6V, independent of VCC operating voltage. The output tolerates voltages above VCC in the 3-state condition. The SGM7SZ126 is available in Green SOT-23-5 and SC70-5 packages. It operates over an ambient temperature range of -40℃ to +85℃. FEATURES ● Ultra-High Speed: tPD = 3.
