SS5205A, SS52A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SS5205A Description

SS52A THRU SS510A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 100 V Forward Current - 5 A .

SS5205A Features

* Metal-semiconductor junction with gard ring
* Epitaxial construction
* Low forward voltage drop
* High current capability
* The plastic material carries UL recognition 94V-0
* For use in low voltage, high frequency inverters, free wheeling, and polar

SS5205A Applications

* Mechanical Data
* Case: molded plastic
* Polarity: Color band denotes cathode Maximum Ratings and Electrical Characteristics Ratings at 25 OC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate curr

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS5205A, SS52A. Please refer to the document for exact specifications by model.

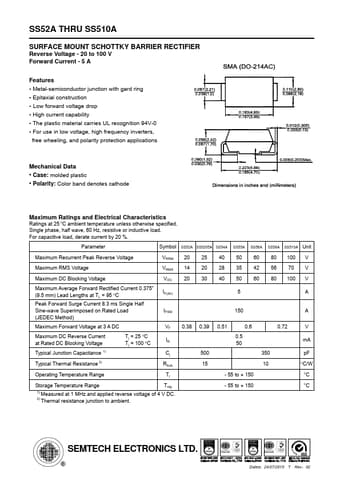

datasheet Preview Page 2

Datasheet Details

Part number
SS5205A, SS52A
Manufacturer
SEMTECH
File Size
264.10 KB
Datasheet
SS52A-SEMTECH.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SS5205A, SS52A.
Please refer to the document for exact specifications by model.
