SS520 Dual Hall-effect Digital Position Sensors

SS520 Description

www.DataSheet4U.com SS520 Series Dual Hall-effect Digital Position Sensors with speed & direction outputs Series SS520 .
The Speed & Direction Hall-effect sensor has two distinct Hall sensing elements precisely located 1.

SS520 Features

* l Single miniature plastic package includes two separate Hall sensors l Frequency signal for speed output l Logic level (High or Low) signal for direction output l Temperature compensated magnetics l Functionality of two discrete Hall sensors and logic circuitry outputs l Symmetry of operate/release

SS520 Applications

* l Anti-pinch electric motor control systems for power windows, power seats (headrest), power sliding doors, sunroofs, garage door openers. l Magnetic encoding for electronic steering systems l Motion control sytems for pulleys and belts l Position and velocity detection l Fan control l Rotating shaf

📥 Download Datasheet

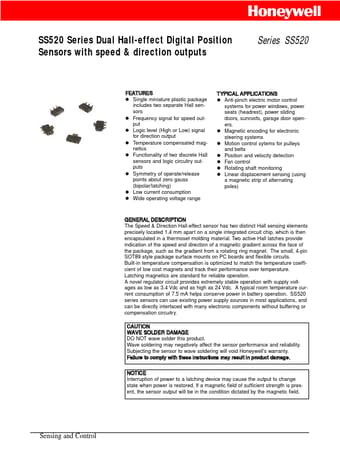

Preview of SS520 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS520
Manufacturer
HONEYWELL
File Size
98.19 KB
Datasheet
SS520_HONEYWELL.pdf
Description
Dual Hall-effect Digital Position Sensors
