SS520B, SS52B SCHOTTKY BARRIER RECTIFIER

SS520B Description

R SEMICONDUCTOR SS52B THRU SS520B SCHOTTKY BARRIER RECTIFIER Reverse Voltage - 20 to 200 Volts Forward Current - 5.0Amperes .

SS520B Applications

* Low power loss ,high efficiency High current capability ,Low forward voltage drop Low profile package Built-in strain relief ,ideal for automated placement For use in low voltage ,high frequency inverters, 0.086(2.20) 0.075(1.91) 0.193(4.90) 0.160(4.06) 0.155(3.94) 0.130(3.30) free wheeling ,and

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS520B, SS52B. Please refer to the document for exact specifications by model.

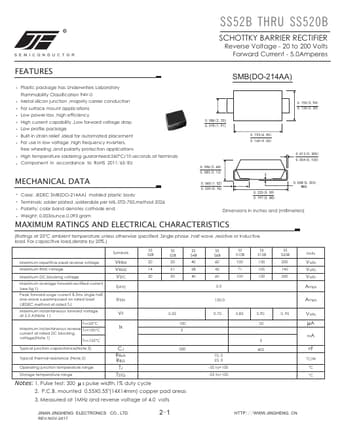

datasheet Preview Page 2

Datasheet Details

Part number
SS520B, SS52B
Manufacturer
JINAN JINGHENG
File Size
421.91 KB
Datasheet
SS52B-JINANJINGHENG.pdf
Description
SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SS520B, SS52B.
Please refer to the document for exact specifications by model.
