SS5200BF, SS5150BF Schottky Barrier Rectifiers

SS5200BF Description

Schottky Barrier Rectifiers Production specification SS5150BF *SS5200BF .

SS5200BF Features

* Metal silicon junction, majority carrier conduction
* High surge capability
* High temperature soldering guaranteed: 260°C/10 seconds
* High current capability, low forward voltage drop
* RoHS Compliant Mechanical Data
* Case: SMBF molded plastic
* Molding compound, UL

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS5200BF, SS5150BF. Please refer to the document for exact specifications by model.

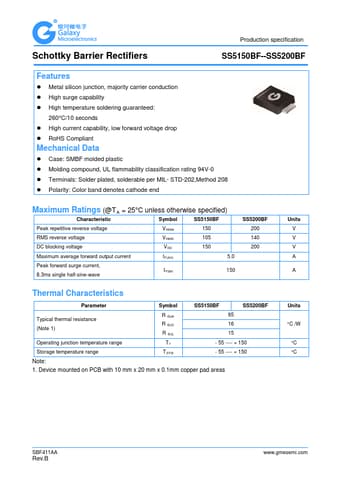

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS5200BF, SS5150BF
Manufacturer
GME
File Size
370.15 KB
Datasheet
SS5150BF-GME.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: SS5200BF, SS5150BF.
Please refer to the document for exact specifications by model.
