SLG55594 - USB Host Charger Identification Analog Switches

Renesas

The SLG55594 by Renesas is a USB Host Charger Identification Analog Switches. Below is the official datasheet preview.

📥 Download Datasheet

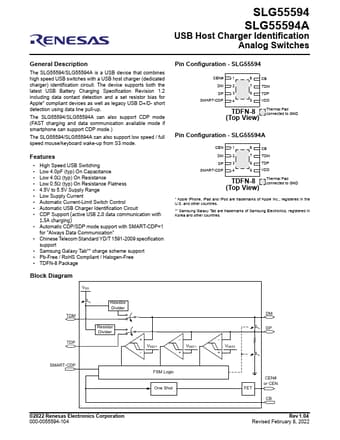

SLG55594 USB Host Charger Identification Analog Switches by Renesas - Datasheet Preview — Official preview page of the **SLG55594** USB Host Charger Identification Analog Switches datasheet (Renesas).

Datasheet Details

Part number	SLG55594
Manufacturer	Renesas
File Size	404.08 KB
Description	USB Host Charger Identification Analog Switches
Datasheet	SLG55594-Renesas.pdf
Additional preview pages of the SLG55594 datasheet.

SLG55594 Product details

Description

The SLG55594/SLG55594A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. compliant devices as well as legacy USB D+/D- short detection using data line pull-up.

Features

High Speed USB Switching.
Low 4.0pF (typ) On Capacitance.
Low 4.0Ω (typ) On Resistance.
Low 0.5Ω (typ) On Resistance Flatness.
4.5V to 5.5V Supply Range.
Low Supply Current.
Automatic Current-Limit Switch Control.
Automatic USB Charger Identification Circuit.
CDP Support (active USB 2.0 data communication with 1.5A charging).
Automatic CDP/SDP mode support with SMART-CDP=1 for "Always Data Communication".
