SLG55593A, SLG55593 - USB Host Charger Identification Analog Switches

Renesas

The SLG55593A by Renesas is a USB Host Charger Identification Analog Switches. Below is the official datasheet preview.

📥 Download Datasheet

SLG55593A USB Host Charger Identification Analog Switches by Renesas - Datasheet Preview — Official preview page of the **SLG55593A** USB Host Charger Identification Analog Switches datasheet (Renesas).

Datasheet Details

Part number	SLG55593A, SLG55593
Manufacturer	Renesas
File Size	313.19 KB
Description	USB Host Charger Identification Analog Switches
Datasheet	SLG55593-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: SLG55593A, SLG55593. Please refer to the document for exact specifications by model.

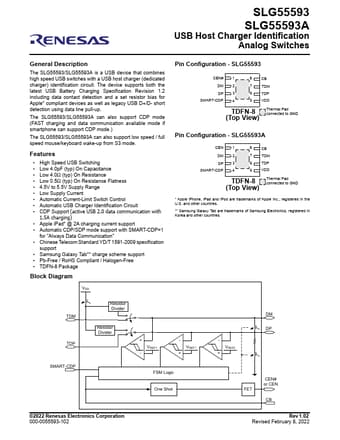

Additional preview pages of the SLG55593A datasheet.

SLG55593A Product details

Description

The SLG55593/SLG55593A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. compliant devices as well as legacy USB D+/D- short detection using data line pull-up.

Features

High Speed USB Switching.
Low 4.0pF (typ) On Capacitance.
Low 4.0Ω (typ) On Resistance.
Low 0.5Ω (typ) On Resistance Flatness.
4.5V to 5.5V Supply Range.
Low Supply Current.
Automatic Current-Limit Switch Control.
Automatic USB Charger Identification Circuit.
CDP Support (active USB 2.0 data communication with 1.5A charging).
Apple iPad.
@ 2A charging current support.
Automatic CDP/SDP mode su.
