SLG55590A, SLG55590 - USB Host Charger Identification Analog Switches

Renesas

The SLG55590A by Renesas is a USB Host Charger Identification Analog Switches. Below is the official datasheet preview.

📥 Download Datasheet

SLG55590A USB Host Charger Identification Analog Switches by Renesas - Datasheet Preview — Official preview page of the **SLG55590A** USB Host Charger Identification Analog Switches datasheet (Renesas).

Datasheet Details

Part number	SLG55590A, SLG55590
Manufacturer	Renesas
File Size	315.48 KB
Description	USB Host Charger Identification Analog Switches
Datasheet	SLG55590-Renesas.pdf
Note	This datasheet PDF includes multiple part numbers: SLG55590A, SLG55590. Please refer to the document for exact specifications by model.

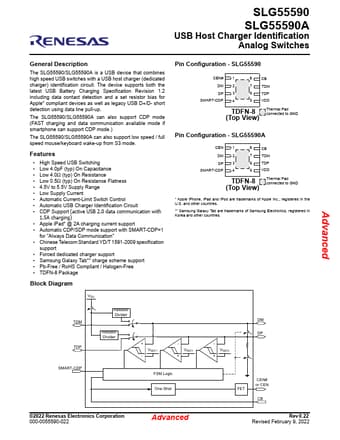

Additional preview pages of the SLG55590A datasheet.

SLG55590A Product details

Description

The SLG55590/SLG55590A is a USB device that combines high speed USB switches with a USB host charger (dedicated charger) identification circuit. compliant devices as well as legacy USB D+/D- short detection using data line pull-up.

Features

High Speed USB Switching.
Low 4.0pF (typ) On Capacitance.
Low 4.0Ω (typ) On Resistance.
Low 0.5Ω (typ) On Resistance Flatness.
4.5V to 5.5V Supply Range.
Low Supply Current.
Automatic Current-Limit Switch Control.
Automatic USB Charger Identification Circuit.
CDP Support (active USB 2.0 data communication with 1.5A charging).
Apple iPad.
@ 2A charging current support.
Automatic CDP/SDP mode su.
