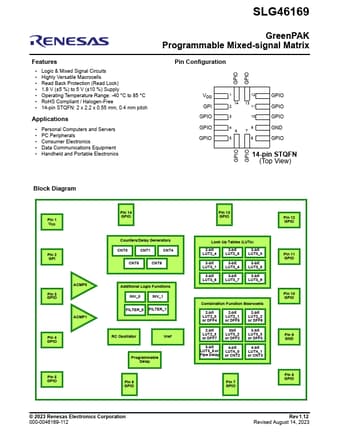

SLG46169 Datasheet (Renesas) - Programmable Mixed-signal Matrix

SLG46169, Programmable Mixed-signal Matrix

2.1 Functional and Programming Pin Description Pin # 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Pin Name VDD GPI GPIO GPIO GPIO GPIO GPIO GPIO GND GPIO GPIO GPIO GPIO GPIO Function Power Supply General Purpose Input General Purpose I/O General Purpose I/O with OE General Purpose I/O or Analog Comparator 0

SLG46169 Features

* Logic & Mixed Signal Circuits

* Highly Versatile Macrocells

* Read Back Protection (Read Lock)

* 1.8 V (±5 %) to 5 V (±10 %) Supply

* Operating Temperature Range: -40 °C to 85 °C

* RoHS Compliant / Halogen-Free

* 14-pin STQFN: 2 x 2.2 x 0.55
