SLG46120 - Programmable Mixed Signal Array

Renesas

The SLG46120 by Renesas is a Programmable Mixed Signal Array. Below is the official datasheet preview.

📥 Download Datasheet

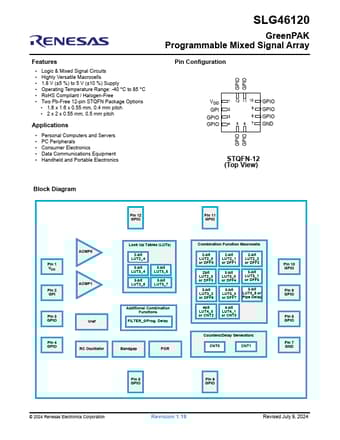

SLG46120 Programmable Mixed Signal Array by Renesas - Datasheet Preview — Official preview page of the **SLG46120** Programmable Mixed Signal Array datasheet (Renesas).

Datasheet Details

Part number	SLG46120
Manufacturer	Renesas
File Size	1.58 MB
Description	Programmable Mixed Signal Array
Datasheet	SLG46120-Renesas.pdf
Additional preview pages of the SLG46120 datasheet.

SLG46120 Product details

Description

2.1 Functional and Programming Pin Description Pin # 1 2 3 4 5 6 7 8 9 10 11 12 Pin Name VDD GPI GPIO GPIO GPIO GPIO GND GPIO GPIO GPIO GPIO GPIO Function Power Supply General Purpose Input General Purpose I/O or Analog Comparator 0 (+) General Purpose I/O or Analog Comparator 0 (-) General Purpose I/O General Purpose I/O or Analog Comparator 1 (+) with OE Ground General Purpose I/O General Purpose I/O General Purpose I/O with OE and Vref output General Purpose I/O General Purpose I/O or Exte

Features

Logic & Mixed Signal Circuits.
Highly Versatile Macrocells.
1.8 V (±5 %) to 5 V (±10 %) Supply.
Operating Temperature Range: -40 °C to 85 °C.
RoHS Compliant / Halogen-Free.
Two Pb-Free 12-pin STQFN Package Options.
1.6 x 1.6 x 0.55 mm, 0.4 mm pitch.
2 x 2 x 0.55 mm, 0.5 mm pitch.
