SLG46116 - Programmable Mixed-signal Matrix

Renesas

The SLG46116 by Renesas is a Programmable Mixed-signal Matrix. Below is the official datasheet preview.

📥 Download Datasheet

SLG46116 Programmable Mixed-signal Matrix by Renesas - Datasheet Preview — Official preview page of the **SLG46116** Programmable Mixed-signal Matrix datasheet (Renesas).

Datasheet Details

Part number	SLG46116
Manufacturer	Renesas
File Size	1.46 MB
Description	Programmable Mixed-signal Matrix
Datasheet	SLG46116-Renesas.pdf

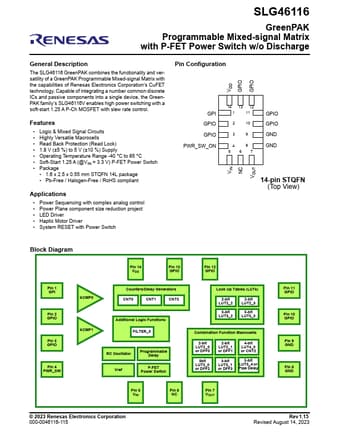

Additional preview pages of the SLG46116 datasheet.

SLG46116 Product details

Description

The SLG46116 GreenPAK combines the functionality and versatility of a GreenPAK Programmable Mixed-signal Matrix with the capabilities of Renesas Electronics Corporation’s CuFET technology.

Features

Logic & Mixed Signal Circuits.
Highly Versatile Macrocells.
Read Back Protection (Read Lock).
1.8 V (±5 %) to 5 V (±10 %) Supply.
Operating Temperature Range -40 °C to 85 °C.
Soft-Start 1.25 A (@VIN = 3.3 V) P-FET Power Switch.
Package.
1.6 x 2.5 x 0.55 mm STQFN 14L package.
Pb-Free / Halogen-Free / RoHS compliant.
