M35075-001FP, M35075 Datasheet - Renesas

M35075-001FP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

The M35075-XXXFP is a character pattern display control IC can display on the CRT display the liquid crystal display and the plasma display. It uses a silicon gate CMOS process and it housed in a 24-pin shrink SOP package (M35075-XXXFP). For M35075-001FP that is a standard ROM version of M35075XXXFP.

M35075-001FP Features

* Screen composition 24 characters ✕ 12 lines

* Number of characters displayed 288 (Max.)

* Character composition 12 ✕ 18 dot matrix

* Characters available ROM character:255 characters RAM character:8 characters

* Character sizes available 4 (vertical) ✕

M35075-Renesas.pdf

This datasheet PDF includes multiple part numbers: M35075-001FP, M35075. Please refer to the document for exact specifications by model.

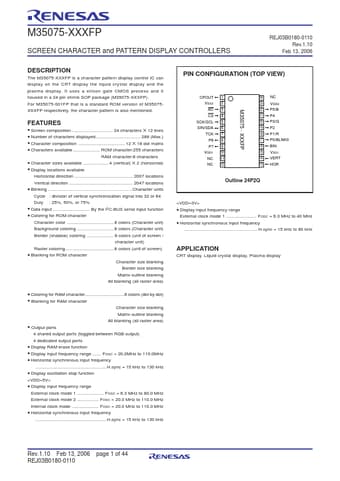

M35075-001FP Datasheet Preview Page 2 M35075-001FP Datasheet Preview Page 3
