M35072 SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

M35072 Description

MITSUBISHI MICROCOMPUTERS M35072-XXXFP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS .
The M35072-XXXFP is a character pattern display control IC can display on the display monitor.

M35072 Features

* Screen composition 24 characters × 12 lines × 2 pages
* Number of characters displayed 288 (Max. ) × 2 pages
* Character composition 12 × 18 dot matrix
* Characters available page 0 : 256 characters page 1 : 256 characters
* Character sizes available 4

📥 Download Datasheet

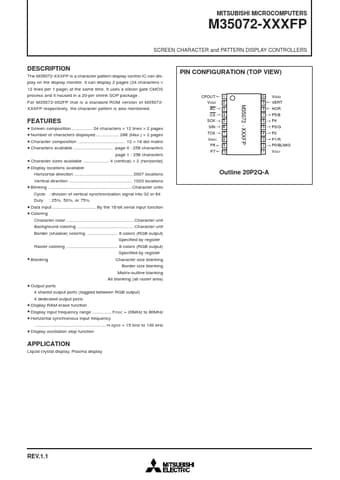

Preview of M35072 PDF
datasheet Preview Page 2 datasheet Preview Page 3
