M35070-002FP, M35070 SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

M35070-002FP Description

MITSUBISHI MICROCOMPUTERS M35070-XXXSP/FP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS .
The M35070-XXXSP/FP is a character pattern display control IC can display on the CRT display the liquid crystal display and the plasma display.

M35070-002FP Features

* Screen composition 24 characters × 12 lines × 2 pages
* Number of characters displayed 288 (Max. ) × 2 pages
* Character composition 12 × 18 dot matrix
* Characters available page 0 : 256 characters page 1 : 256 characters
* Character sizes available 4

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M35070-002FP, M35070. Please refer to the document for exact specifications by model.

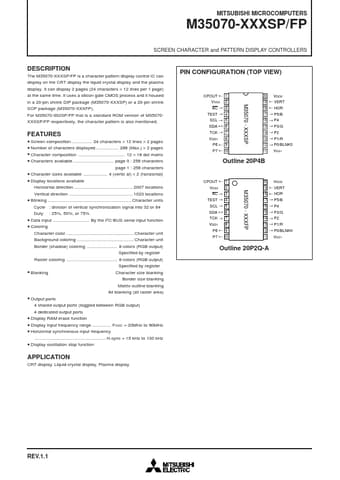

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M35070-002FP, M35070
Manufacturer
Mitsubishi
File Size
317.67 KB
Datasheet
M35070_MitsubishiElectricSemiconductor.pdf
Description
SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Note
This datasheet PDF includes multiple part numbers: M35070-002FP, M35070.
Please refer to the document for exact specifications by model.
