M35071-002FP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

The M35071-XXXSP/FP is a character pattern display control IC can display on the CRT display the liquid crystal display and the plasma display. It can display 2 pages (24 characters × 12 lines per 1 page) at the same time. It uses a silicon gate CMOS process and it housed in a 20-pin shrink DIP pack.

M35071-002FP Features

* Screen composition 24 characters × 12 lines × 2 pages

* Number of characters displayed 288 (Max.) × 2 pages

* Character composition 12 × 18 dot matrix

* Characters available page 0 : 256 characters page 1 : 128 characters

* Character sizes available 4

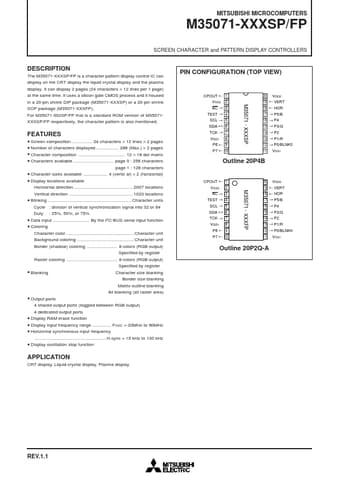

M35071_MitsubishiElectricSemiconductor.pdf

M35071-002FP Datasheet Preview — This datasheet PDF includes multiple part numbers: M35071-002FP, M35071. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

M35071-002FP, M35071

Manufacturer:

Mitsubishi

File Size:

240.14 KB

Description:

Screen character and pattern display controllers.

Note:

This datasheet PDF includes multiple part numbers: M35071-002FP, M35071.
Please refer to the document for exact specifications by model.
