M35071-002SP, M35071 SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS

M35071-002SP Description

MITSUBISHI MICROCOMPUTERS M35071-XXXSP/FP SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS .
The M35071-XXXSP/FP is a character pattern display control IC can display on the CRT display the liquid crystal display and the plasma display.

M35071-002SP Features

* Screen composition 24 characters × 12 lines × 2 pages
* Number of characters displayed 288 (Max. ) × 2 pages
* Character composition 12 × 18 dot matrix
* Characters available page 0 : 256 characters page 1 : 128 characters
* Character sizes available 4

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: M35071-002SP, M35071. Please refer to the document for exact specifications by model.

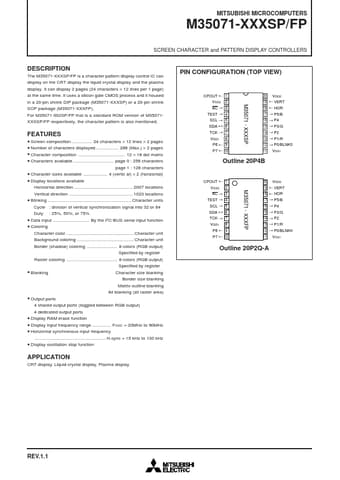

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M35071-002SP, M35071
Manufacturer
Mitsubishi
File Size
240.14 KB
Datasheet
M35071_MitsubishiElectricSemiconductor.pdf
Description
SCREEN CHARACTER and PATTERN DISPLAY CONTROLLERS
Note
This datasheet PDF includes multiple part numbers: M35071-002SP, M35071.
Please refer to the document for exact specifications by model.
