RF3118 3V 1900MHZ LINEAR AMPLIFIER MODULE

RF3118 Description

Preliminary RF3118 3V 1900MHZ LINEAR AMPLIFIER MODULE 2 Typical Applications * 3V CDMA US-PCS Handsets * 3V CDMA2000/1X PCS Handsets.
The RF3118 is a high-power, high-efficiency linear amplifier IC targeting 3V handheld systems.

RF3118 Features

* Input/Output Internally Matched@50 Ω
* Single 3V Supply
* 29dBm Linear Output Power
* 27dB Linear Gain VCC1 1 7 GND RF IN 2 6 RF OUT
* 34% Linear Efficiency
* 50mA Idle Current VREG 3 4 VMODE 5 VCC2 Ordering Information RF3118 RF3118 P

RF3118 Applications

* 3V CDMA US-PCS Handsets
* 3V CDMA2000/1X PCS Handsets
* Compatible with Qualcomm Chipset

📥 Download Datasheet

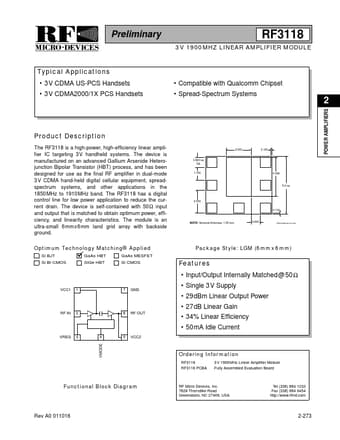

Preview of RF3118 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RF3118
Manufacturer
RF Micro Devices
File Size
116.93 KB
Datasheet
RF3118_RFMicroDevices.pdf
Description
3V 1900MHZ LINEAR AMPLIFIER MODULE
