RF3100-2 3V 900MHZ LINEAR AMPLIFIER MODULE

RF3100-2 Description

RF3100-2 2 Typical Applications * 3V CDMA/AMPS Cellular Handsets * 3V CDMA2000/1X Cellular Handsets * Spread-Spectrum Systems .
The RF3100-2 is a high-power, high-efficiency linear amplifier module targeting 3V hand-held systems.

RF3100-2 Features

* Input/Output Internally Matched@50 Ω
* Single 3V Supply
* 28dBm Linear Output Power
* 29dB Linear Gain VCC1 1 7 GND RF IN 2 6 RF OUT
* 45mA Idle Current VREG 3 4 VMODE 5 VCC2 Ordering Information RF3100-2 3V 900MHz Linear Amplifier Module RF31

RF3100-2 Applications

* 3V CDMA/AMPS Cellular Handsets
* 3V CDMA2000/1X Cellular Handsets
* Spread-Spectrum Systems

📥 Download Datasheet

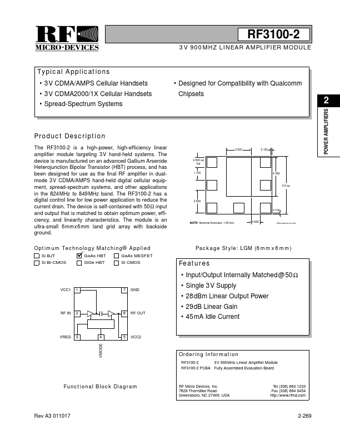

Preview of RF3100-2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RF3100-2
Manufacturer
RF Micro Devices
File Size
118.36 KB
Datasheet
RF3100-2_RFMicroDevices.pdf
Description
3V 900MHZ LINEAR AMPLIFIER MODULE
