RF3117 3V 900MHZ LINEAR AMPLIFIER MODULE

RF3117 Description

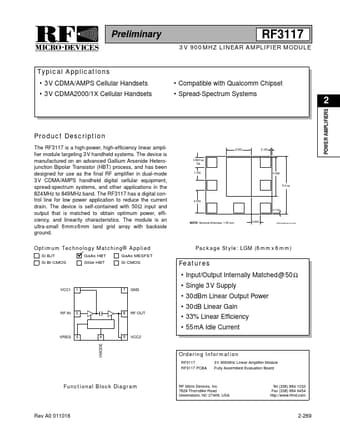

Preliminary RF3117 3V 900MHZ LINEAR AMPLIFIER MODULE 2 Typical Applications * 3V CDMA/AMPS Cellular Handsets * 3V CDMA2000/1X Cellul.
The RF3117 is a high-power, high-efficiency linear amplifier module targeting 3V handheld systems.

RF3117 Features

* Input/Output Internally Matched@50 Ω
* Single 3V Supply
* 30dBm Linear Output Power
* 30dB Linear Gain VCC1 1 7 GND RF IN 2 6 RF OUT
* 33% Linear Efficiency
* 55mA Idle Current VREG 3 4 VMODE 5 VCC2 Ordering Information RF3117 RF3117 P

RF3117 Applications

* 3V CDMA/AMPS Cellular Handsets
* 3V CDMA2000/1X Cellular Handsets
* Compatible with Qualcomm Chipset
