RF3100-3K 3V 1700MHZ LINEAR AMPLIFIER MODULE

RF3100-3K Description

RF3100-3K 2 Typical Applications * 3V CDMA Korean-PCS Handsets * Spread-Spectrum Systems * Designed for Compatibility with Qua.
The RF3100-3K is a high-power, high-efficiency linear amplifier IC targeting 3V hand-held systems.

RF3100-3K Features

* Input/Output Internally Matched@50 Ω
* Single 3V Supply
* 28dBm Linear Output Power
* -141dBm/Hz Noise Power VCC1 1 7 GND RF IN 2 6 RF OUT
* 35% Linear Efficiency
* 45mA Idle Current (Low Power Mode) VREG 3 4 VMODE 5 VCC2 Ordering Info

RF3100-3K Applications

* 3V CDMA Korean-PCS Handsets
* Spread-Spectrum Systems

📥 Download Datasheet

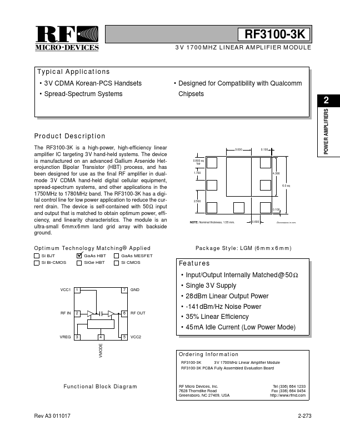

Preview of RF3100-3K PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RF3100-3K
Manufacturer
RF Micro Devices
File Size
116.68 KB
Datasheet
RF3100-3K_RFMicroDevices.pdf
Description
3V 1700MHZ LINEAR AMPLIFIER MODULE
