RF3100-3 - 3V 1900MHZ LINEAR AMPLIFIER MODULE

Description

The RF3100-3 is a high-power, high-efficiency linear amplifier IC targeting 3V hand-held systems.

Features

  • Input/Output Internally Matched@50 Ω.
  • Single 3V Supply.
  • 28dBm Linear Output Power.
  • -141dBm/Hz Noise Power VCC1 1 7 GND RF IN 2 6 RF OUT.
  • 35% Linear Efficiency.
  • 45mA Idle Current (Low Power Mode) VREG 3 4 VMODE 5 VCC2 Ordering Information RF3100-3 3V 1900MHz Linear Amplifier Module RF3100-3 PCBA Fully Assembled Evaluation Board Functional Block Diagram RF Micro Devices, Inc. 7628 Thorndike Road Greensboro, NC 27409, USA Tel.

📥 Download Datasheet

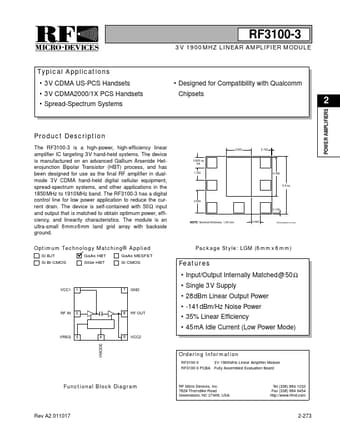

Datasheet preview – RF3100-3

Datasheet Details

Part number RF3100-3
Manufacturer RF Micro Devices
File Size 117.08 KB
Description 3V 1900MHZ LINEAR AMPLIFIER MODULE
Datasheet download datasheet RF3100-3 Datasheet
Additional preview pages of the RF3100-3 datasheet.

📁 Similar Datasheet

  • RF310 - (RF310 / RF313) HIGH REPEATABILITY ULTRAMINIATURE T0-5 RF BYPASS RELAY (Teledyne Technologies Incorporated)
  • RF312 - DPDT Non-Latching Electromechanical Relay (Teledyne)
  • RF313 - (RF310 / RF313) HIGH REPEATABILITY ULTRAMINIATURE T0-5 RF BYPASS RELAY (Teledyne Technologies Incorporated)
  • RF3133 - QUAD-BAND GSM850/GSM/DCS/PCS POWER AMP MODULE (RF Monolithics)
  • RF3140 - QUAD-BAND GSM850/GSM900/DCS/PCS PCS (RF Monolithics)
  • RF3171 - SAW Filter (RF Monolithics)
  • RF3171D - SAW Filter (RF Monolithics)
  • RF3181 - SAW Filter (RF Monolithics)
  • RF3189 - QUAD-BAND GSM/EDGE/GSM850/EGSM900/DCS/PCS/POWER AMPLIFIER MODULE (RFMD)
  • RF300 - DPDT Non-Latching Electromechanical Relay (Teledyne)
Other Datasheets by RF Micro Devices
  • RF3100-3K - 3V 1700MHZ LINEAR AMPLIFIER MODULE
  • RF3100-2 - 3V 900MHZ LINEAR AMPLIFIER MODULE
  • RF3105 - 3V 900MHZ LINEAR AMPLIFIER MODULE
  • RF3108 - TRIPLE-BAND GSM/DCS/PCS POWER AMP MODULE
  • RF3110 - TRIPLE-BAND GSM/DCS/PCS POWER AMP MODULE
  • RF3117 - 3V 900MHZ LINEAR AMPLIFIER MODULE
  • RF3118 - 3V 1900MHZ LINEAR AMPLIFIER MODULE
  • RF3120 - 3V 1800MHZ LINEAR AMPLIFIER MODULE

Full PDF Text Transcription

Click to expand full text
RF3100-3 2 Typical Applications • 3V CDMA US-PCS Handsets • 3V CDMA2000/1X PCS Handsets • Spread-Spectrum Systems • Designed for Compatibility with Qualcomm Chipsets 3V 1900MHZ LINEAR AMPLIFIER MODULE 2 POWER AMPLIFIERS 4.390 6.0 sq 0.100 Dimensions in mm. Product Description The RF3100-3 is a high-power, high-efficiency linear amplifier IC targeting 3V hand-held systems. The device is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) process, and has been designed for use as the final RF amplifier in dualmode 3V CDMA hand-held digital cellular equipment, spread-spectrum systems, and other applications in the 1850MHz to 1910MHz band. The RF3100-3 has a digital control line for low power application to reduce the current drain.
