PAW3102DB - HIGH RESOLUTION CMOS OPTICAL MOUSE SENSOR

Name: PAW3102DB
SKU: PAW3102DB-914606

PixArt

📥 Download Datasheet

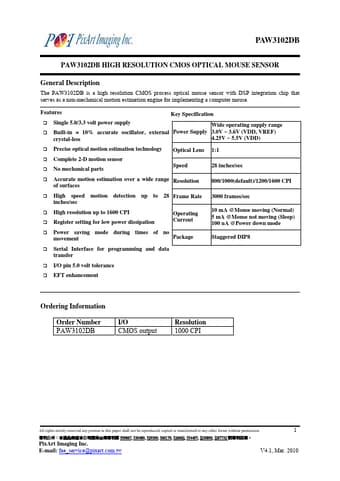

PAW3102DB Datasheet Preview — Preview of PAW3102DB PDF

Datasheet Details

Part number	PAW3102DB
Manufacturer	PixArt
File Size	325.47 KB
Description	HIGH RESOLUTION CMOS OPTICAL MOUSE SENSOR
Datasheet	PAW3102DB-PixArt.pdf

PAW3102DB Product details

Description

The PAW3102DB is a high resolution CMOS process optical mouse sensor with DSP integration chip that serves as a non-mechanical motion estimation engine for implementing a computer mouse.

Features

Key Specification Single 5.0 volt power supply Built-in ± 10% accurate oscillator, external Power Supply Wide operating supply range 4.25V ~ 5.5V crystal-less Precise optical motion estimation technology Complete 2-D motion sensor No mechanical parts Optical Lens 1:1 Speed 28 inches/sec Accurate motion estimation over a wide range Resolution of surfaces 800/1000(default)/1200/1600 CPI High speed motion detection up to 28 Frame Rate inches/sec High resolution u.
