PAW3101DB - CMOS OPTICAL MOUSE SENSOR

Name: PAW3101DB
SKU: PAW3101DB-914607

PixArt

📥 Download Datasheet

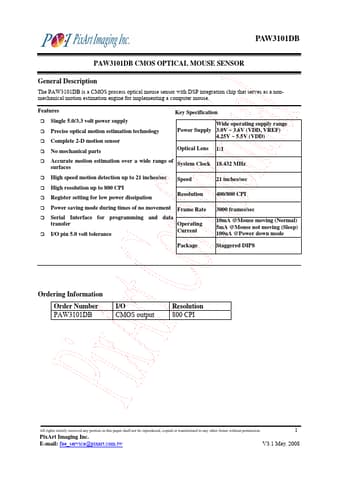

PAW3101DB Datasheet Preview — Preview of PAW3101DB PDF

Datasheet Details

Part number	PAW3101DB
Manufacturer	PixArt
File Size	438.34 KB
Description	CMOS OPTICAL MOUSE SENSOR
Datasheet	PAW3101DB-PixArt.pdf

PAW3101DB Product details

Description

The PAW3101DB is a CMOS process optical mouse sensor with DSP integration chip that serves as a nonmechanical motion estimation engine for implementing a computer mouse.

Features

Single 5.0/3.3 volt power supply Precise optical motion estimation technology Complete 2-D motion sensor No mechanical parts Key Specification Wide operating supply range Power Supply 3.0V ~ 3.6V (VDD, VREF) 4.25V ~ 5.5V (VDD) Optical Lens 1:1 Accurate motion estimation over a wide range of surfaces System Clock 18.432 MHz High speed motion detection up to 21 inches/sec High resolution up to 800 CPI Register setting for low power dissipation Speed Resolution 21 inches/sec.
